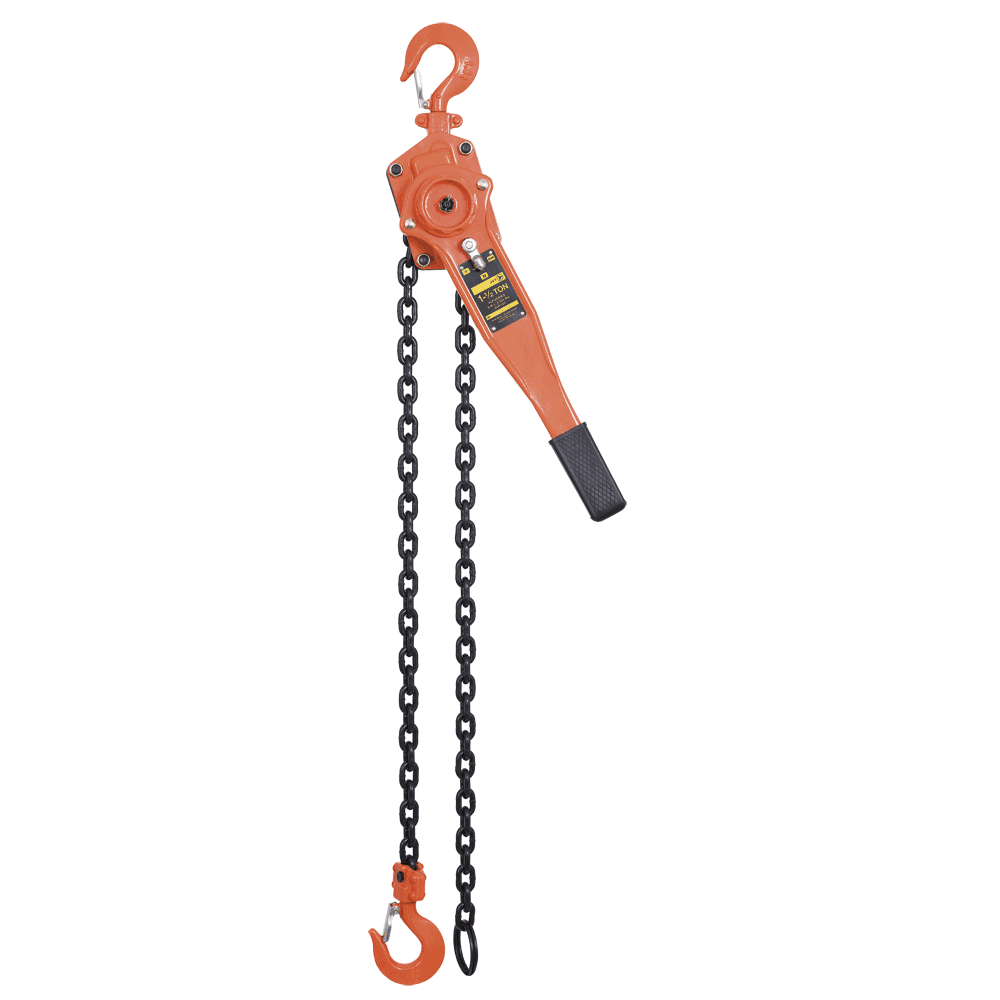

Jet 110307 1 1/2 Ton 10′ Lift VLP Series Lever Chain Hoist

Home » Shop » Jet Equipment & Tools » Jet 110307 1 1/2 Ton 10′ Lift VLP Series Lever Chain Hoist
Adams SKU: JET-110307
Manufacturer Part#: Jet Equipment & Tools 110307 Category:
JET Equipment & Tools - A leading brand of industrial and automotive tools and equipment in Canada

The JET Equipment & Tools 110307 VLP-150-10 1-1/2 Ton VLP Series Lever Chain Puller is an industrial quality product for customers who want a quality product that is guaranteed to work. The 110307 VLP Series puller is equipped with a number of great quality and safety features like pawl Weston style brake for reliable and safe operation with exclusive premium grade, non-asbestos brake discs for longest life. The VLP series lever chain puller are made in a ISO 9001-2000 certified factory, tested to 150% of rated capacity with certificate and meets the high ASME B30.21 standards. For added safety and security, the 110307 top and bottom safety hooks bend to warn of overload situations.  The VLP chain pullers are also equipped with Deformation indicators on hooks allow accurate measurement for easy maintenance. This unit includes cold formed stamped steel housings resist impact, a 10′ grade 80 load chain that can be special ordered with any length desired. Just ask you Adam’s Tarp and Tool salesperson for a quote!

JET 110307 VLP-150-10 1-1/2 Ton VLP Series Lever Chain Puller 10′ Lift Features

  • Product #  110307 | Model # VLP-150-10
  • Cold formed stamped steel housings resist impact
  • Grade 80 load chain
  • Hardened steel roller bearings support load for easier operation
  • Dual pawl Weston style brake for reliable and safe operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Top and bottom safety hooks bend to warn of overloads
  • Deformation indicators on hooks allow accurate measurement for easy maintenance
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.21 standards
  • ISO 9001-2000 certified factory

NOTE: Custom Lifts are available in any length desired. Just let us know!

JET 110307 VLP-150-10 1-1/2 Ton VLP Series Lever Chain Puller 10′ Lift Specifications

  • A: 6-3/4″
  • B:  3-7/8″
  • C:  47 mm
  • D: 16-1/2″
  • Force Req. to Lift Capacity: 48 lb
  • H: 15″
  • Lever Length: 16-1/2″
  • Load Chain Diameter: 8.0 mm
  • Min. Distance Between Hooks: 15″
  • Number of Falls: 1
  • Product Weight: 28.7 lb (13.3 kg)
  • Rated Lifting Capacity: 1-1/2 T
  • Shipping Weight: 30.4 lb (13.6 kg)
  • Standard Lift: 10′

Additional information

Weight 30.4 lbs
Dimensions 20.7 × 7 × 8.25 in
