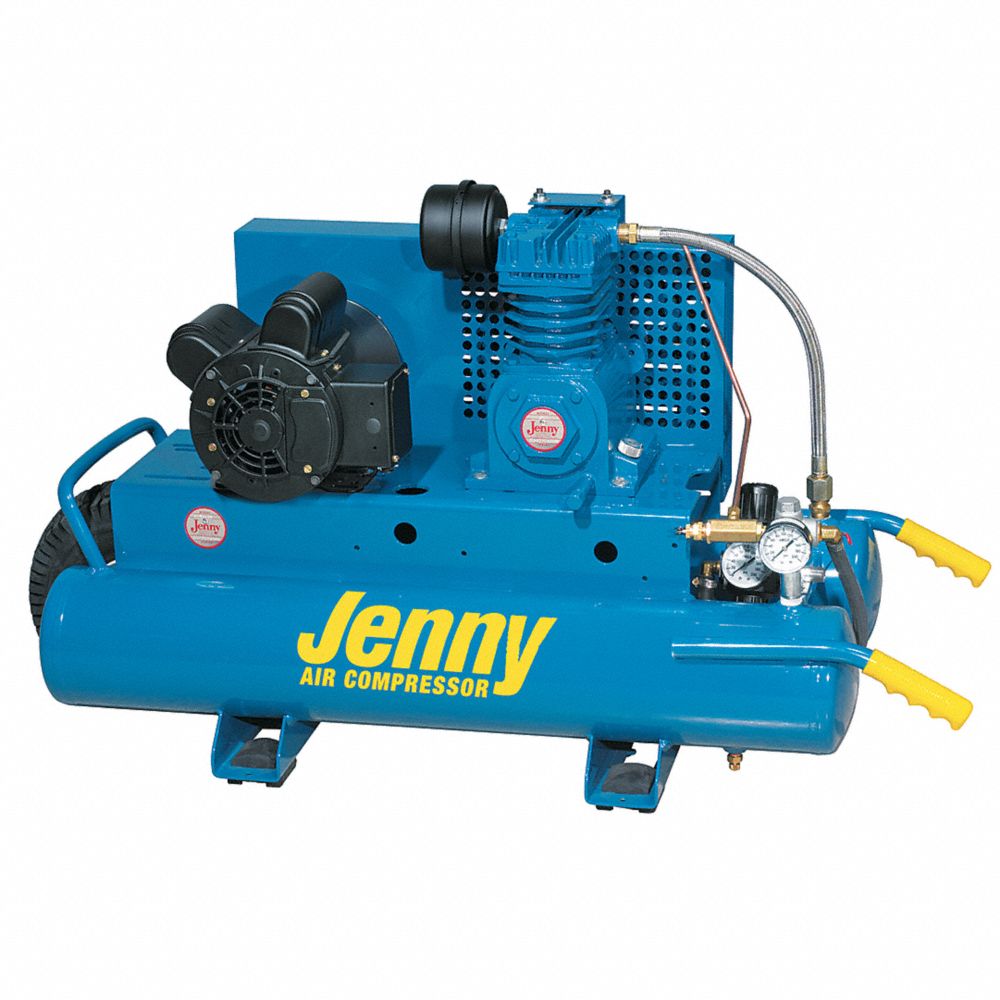

The Jenny K15A-8P 8Gal 1.5HP 6.5CFM Electric Air Compressor is a heavy duty single stage commercial air compressor designed to be run in the most industrial environments. The Jenny K15A-8P features a heavy duty single stage cast iron compressor pump min in Somerset ,PA, USA, and a 1.5HP Industrial / Commercial grade UL Listed electric motor with overload motor protection for long runtime applications. The K15A-8P is belt driven and has a large fly wheel for extra cooling and improved starting. For jobsite safety the belt guard is a totally enclosed heavy duty shroud. The Jenny K15A-8P comes with a durable powder coated twin tank receiver which protects it from the elements. Jenny compressors are widely considered one of the best commercial quality air compressors on the market today!
Jenny K15A-8P 8Gal 1.5HP 6.5CFM Electric Air Compressor Features
- Heavy-duty single stage cast iron compressor pump Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Synthetic Blue Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty belt guard
- Low profile, powder coated twin tank receivers
- Convenient lifting handles
- Anti-vibration feet
- Pneumatic tire
- Protectively mounted fittings
- Manual tank drain
- Large canister intake filter with replaceable filter elements
- Special unloading valves to assist in motor starting
- Stainless steel braided discharge hose
- Tank gauge
- Regulator and outlet pressure gauge
- Pressure relief safety valve
- Designed, tested and proven to meet the demands of the construction and rental industry
- 6.5 CFM @ 100 PSI
- 6.2 CFM @ 125 PSI
Jenny K15A-8P 8Gal 1.5HP 6.5CFM Electric Air Compressor Electric Motor Features
- Constant run control set at 105-125 PSI
- High quality pilot valve
- 1.5HP Industrial/Commercial grade UL Listed electric motor
- 115V Power
- Thermal overload motor protection
- 6 ft power cord
Jenny K15A-8P 8Gal 1.5HP 6.5CFM Electric Air Compressor Specifications
- Item: Wheeled Portable Air Compressor
- Lubrication Type: Oil Lubricated
- Air Tank Style: Wheelbarrow
- Output Power: 1-1/2 hp
- Free Air Flow Rate: 7.4 CFM
- Maximum Pressure: 125 psi
- Tank Size: 8 gal
- Input Voltage: 115V AC, 230V AC
- Current Rating: 15.8 A, 7.9 A
- Sound Level: 85 dBA
- Weight: 179 lb
- Free Air Flow Rate @ 125 PSI: 6.20 CFM
- Free Air Flow Rate @ 100 PSI: 6.50 CFM
- Pump Type: Piston
- Number of Stages: Single
- Motor Type: Induction
- Maximum Speed: 1,725 RPM
- Duty Cycle: Continuous Duty
- Electrical Connection: 6′ Cord with Plugs
- Cylinders: 2
- Cylinder Material: Cast Iron
- Valve Type: Pilot
- Control Type: On/Off
- Outlet Size: 3/8″
- Outlet Type: NPT
- Outlet Gender: Female
- Overall Length: 42-1/2″
- Overall Width: 18-1/4″
- Overall Height: 24-3/4″
- Average Pump Life: 5,000 hr
- Standards: CSA, UL
Jenny K15A-8P 8Gal 1.5HP 6.5CFM Electric Air Compressor Includes
- K15A-8P Compressor
- Jenny Synthetic Blue Compressor Pump Oil
- Manual
