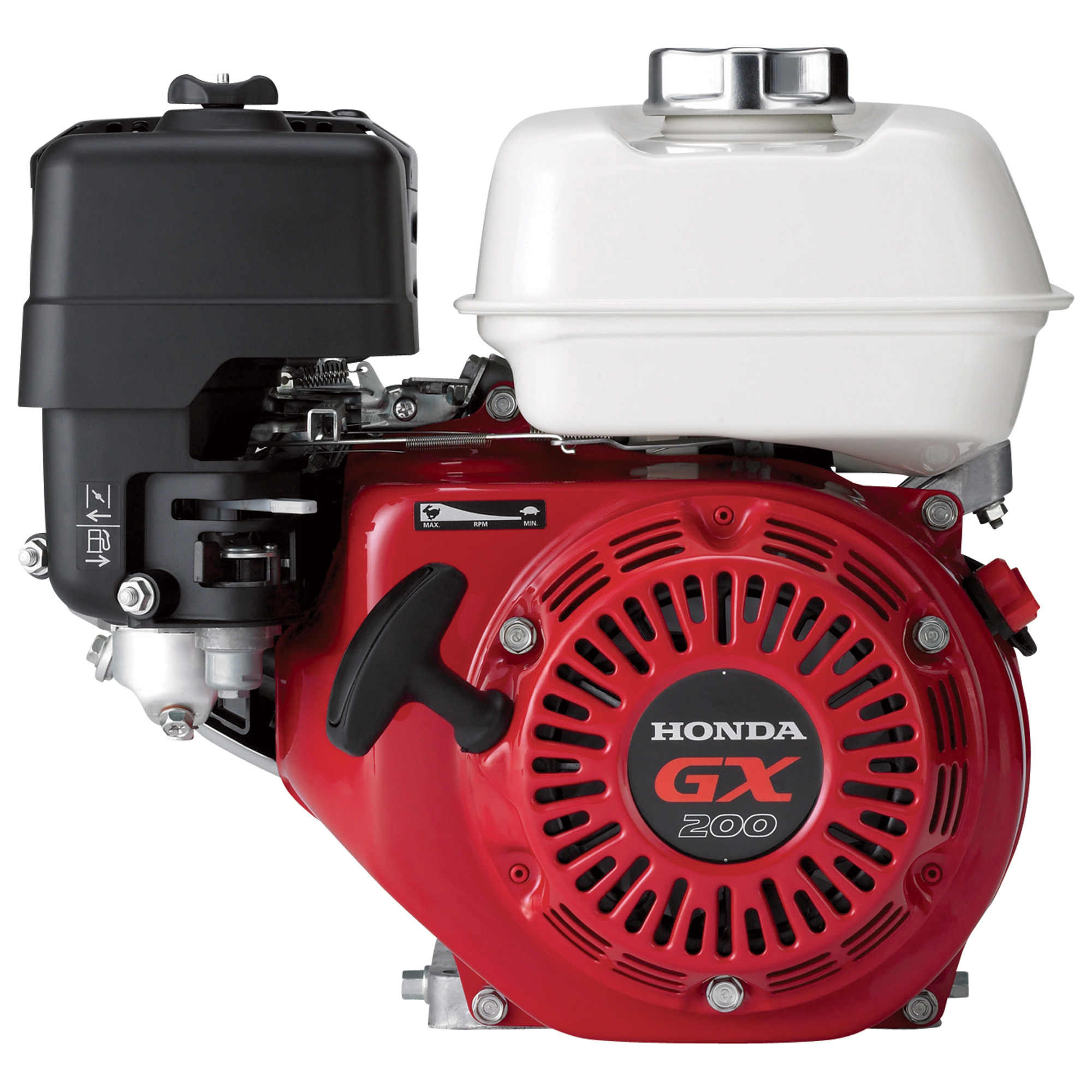

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX 200 lives up to the legend. The Honda 196cc GX200 OHV commercial-grade engine is designed for the most demanding commercial applications. The Honda GX200 has set an industry standard for reliability and durability. The GX200 features an Overhead Valve design which offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment.
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Common Applications
- Pressure washers
- Commercial lawn and garden equipment
- Tillers / cultivators
- Forestry equipment
- Log Splitters
- Chippers/Shredders
- Generators
- Construction/industrial equipment
- Agricultural equipment
- Water pumps
- Small vehicles
- Go Carts
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Fuel Efficient High-Out Put Operation
- Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
- OHV design for increased efficiency and optimal power transfer
- High compression ratio for better fuel efficiency
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Smooth Performance
- Precision engineered components result in lower vibration
- Reduced piston weight and precision-balanced crankshaft result in lower engine vibration (GX160)
- Ball bearing supported crankshaft for greater stability
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Extremely Quiet
- Aluminum push rods reduce both valve clearance and noise level. (GX160)
- Muffler and breather valve enhancements reduce noise and improve sound quality
- Reduced mechanical noise due to light weight, noise-reducing materials
- Forged steel crankshaft and rigid crankcase
- Helical cut gears
- Sophisticated air intake system
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Proven Reliability
- Oil Alert
- New carburetor chamber coating and carburetor filter help to protect against fuel impurities
- Cast iron cylinder sleeve
- High quality materials, fit, and finish
- Dual element air cleaner
- Fuel Valve
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Easy to Use, Easy to Maintain
- Simple throttle control
- Large fuel tanks
- Large automotive type fuel cap
- Dual oil drains and fill
- Easy, convenient, heavy duty control box
- Easily accessible spark plug
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Easy Starting
- Heavy duty recoil starter
- Ergonomic, easy to grip recoil rope design
- Automatic mechanical de-compression system
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Emissions Compliant
- Lower emissions, same power output!
- No catalyst necessary
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Available Options
- Low profile versions (Select models)
- Gear reduction options
- Electic start (Select models)
- Spark arrester available
- Charge and lamp coils with multiple output options available
- Cyclone Air Cleaner available ( Select models)
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Specifications
- Engine Type: Air-cooled 4-stroke OHV
- Bore x Stroke: 68 X 54 mm
- Displacement: 196 cm3
- Net Power Output: 5.8 hp (4.3 kW) @ 3,600 rpm
- Net Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
- PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
- Compression Ratio: 8.5:1
- Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
- Carburetor: Butterfly
- Ignition System: Transistorized magneto
- Starting System: Recoil Starter
- Lubrication System: Splash
- Governor System: Mechanical
- Air Cleaner: Dual element
- Oil Capacity: 0.63 US qt (0.6l)
- Fuel Tank Capacity: 3.3 U.S. qts (3.1 liters)
- Fuel: Unleaded 86 octane or higher
- Dry Weight: 35 lbs. (16.1 kg)
- Length (min): 12.6″ (321mm)
- Width (min): 14.8″ (376mm)
- Height (min): 13.6” (346 mm)
- L type: Reduction type PTO
- Q type: Straight shaft
- T type: Straight shaft
Honda GX200 Pull Start Horizontal Crankshaft OHV 4-Stroke Gas Engine Warranty
- 3-Year Limited Warranty
* The power rating of the engine indicated in this catalogue is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm (7000 rpm for model GHX50, GXV50, GX25 and GX35). Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables
