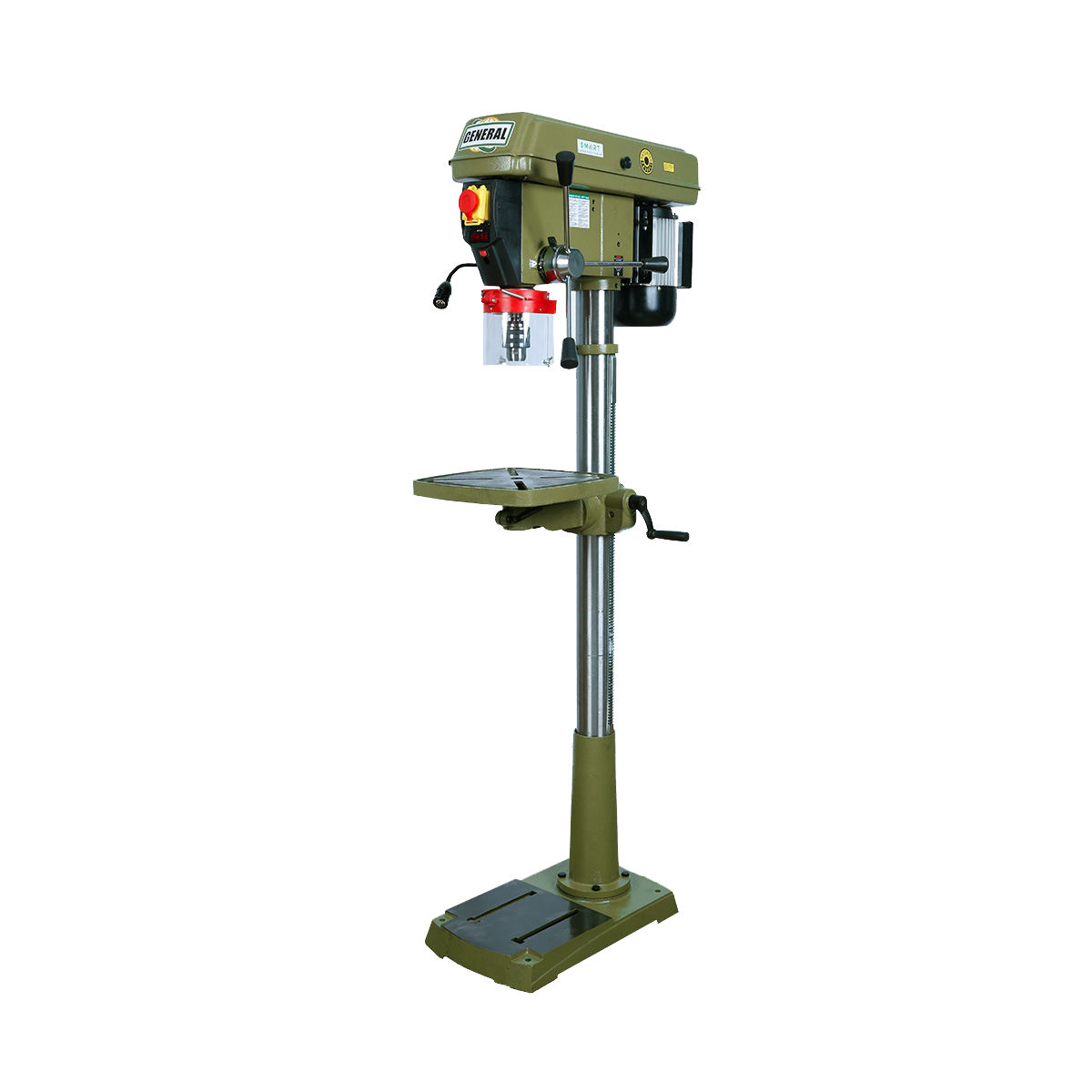

General 75-165M1 17″ Variable Speed Drill Press 3/4HP 120V 6.5A

General International 75-165M1 17” Variable Speed Floor Drill Press is a woodworkers dream. The General 75-165M1 drill press is loaded with all the features you need. The 75-165M1 is mechanical variable speed with digital read-out (DRO) for drilling or sanding. It also has a global patented “X” crosshair laser pointer for drilling with precision. The 3-1/8” spindle travel provides maximum depth cutting along with a sturdy depth stop with an adjustable spindle return spring for repetitive drilling to the same depth. The General International 75-165M1 17″ drill press features a 13-3/16″ x 13 3/16″ table with T-slots which allows it to be outfitted with a vise or clamps.

General International 75-165M1 17” Variable Speed Drill Press Features

• Adjustable spindle tension return spring.
• Global patented laser Pointer with “X” crosshairs for drilling accuracy
• Sturdy design with cast-iron head, base, and table.
• High-quality bearings for smooth, vibration-free operation.
• Simple hand lever controlled mechanical variable speed from 280 to 2100 rpm.
• Digital spindle speed display.
• Industrial 5/8″ chuck with key & convenient onboard chuck key holder
• Industrial-quality 3/4 HP 120 V motor
• Easy to use see-through flip-up chuck guard included (great for schools)
• Crank-operated rack and pinion table height- adjustment.
• Cast-iron, sturdy design, with large stable base and table
• ETL (Electrical Testing Laboratories) Certified

General International 75-165M1 17” Variable Speed Drill Press Specifications

• Swing 17″ (430 mm) – # 75-165
• Drilling capacity / Chuck size 1-1/8″ (28 mm) / 5/8″ (16 mm)
• Spindle travel 3-1/8″ (80 mm)
• Spindle distance to table / to base 29″ (735 mm) / 48 5/8″ (1235 mm)
• Table size (Diameter) 13-3/16″ x 13 3/16″ (335 x 335 mm)
• Column diameter 3-1/8″ (80 mm)
• Spindle speeds (Variable speed) 280 to 2100 rpm
• Spindle taper MT 3
• Overall height 64 3/8″ (1635 mm)
• Base size 20 1/4″ x 12″ (515 x 303 mm)
• Motor 3/4 HP, 120 V, 6,5A
• Weight 136 lbs 161 lbs (73 kg)

General International 75-165M1 17” Variable Speed Drill Press Warranty

• General’s 3 Year Limited Warranty Without Registration
• General’s 5 Year Limited Warranty When Registered within 60 Days
