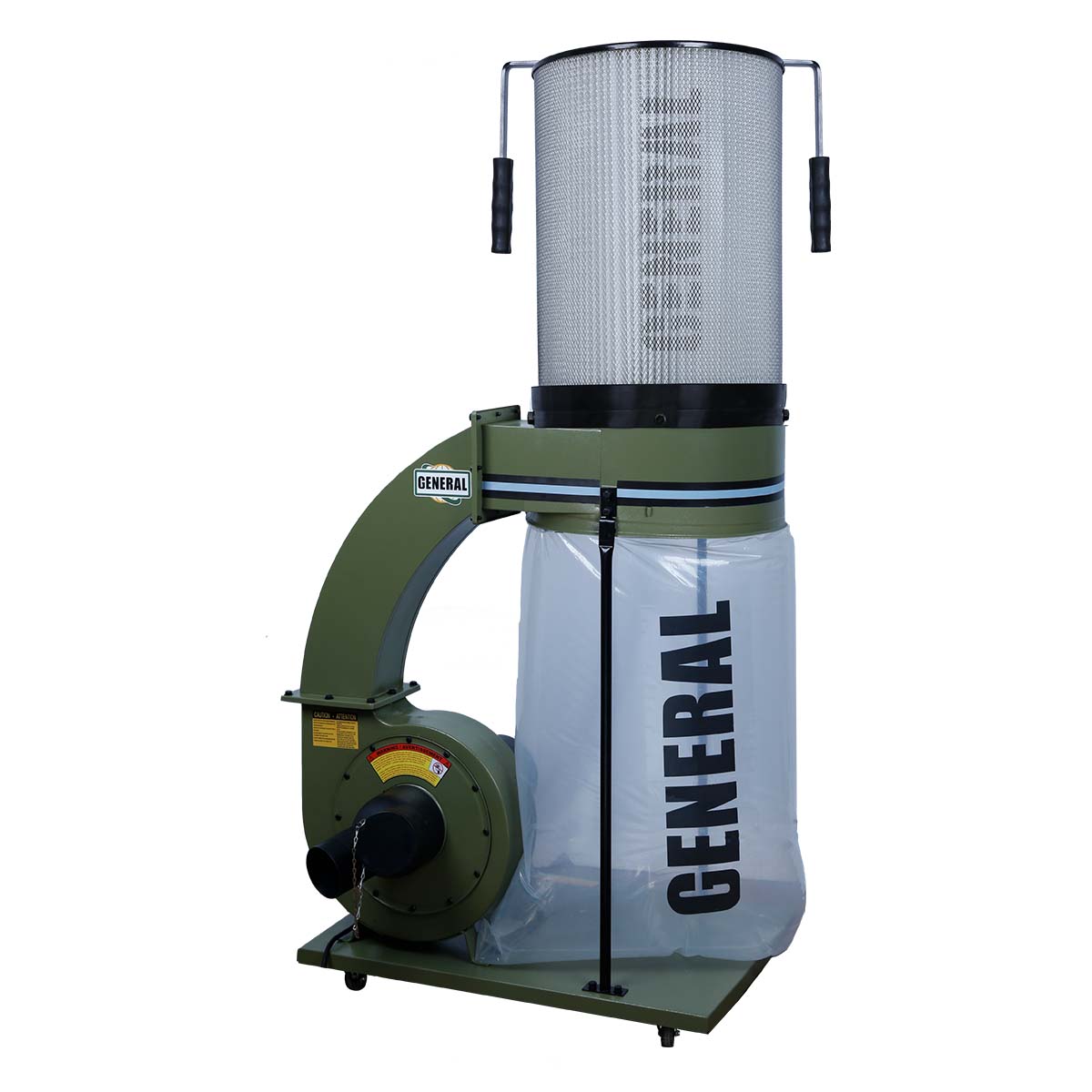

General 10-110 CF M1 2 HP 1550 CFM Canister Filter Dust Collector 110/220 V, 1 Ph, 15 A

The General 10-110 CF M1 2 HP 1550 CFM Canister Filter Dust Collector has been designed for small to medium shops applications and can help eliminate the clean-up after wood projects. The 10-110 CF M1 features a 1 Micron Pleated Canister Filter that is a high-efficiency top filter that removes ultra-fine dust particles.

General 10-110 CF M1 2 HP 1550 CFM Canister Filter Dust Collector Features

• Pleated, high-efficiency top filter that removes ultra-fine dust particles
• 1 Micron Canister Filter
• “Auto Switch” where the machine can be directly connected, plugged into the dust collector, when the machine is turned ON/OFF the dust collector will be turned ON/OFF automatically. (DAS Units ONLY)
• Convenient “Snap Ring” on a lower collection bag.
• Heavy-duty motor design with a continuous duty rating for industrial applications.
• Equipped with the totally enclosed, fan-cooled, permanently lubricated motor.
• Designed for industrial applications with a continuous duty rating.
• Heavy-duty base, mounted on four swivel casters, allowing total mobility and stability.
• Safety switch with key. The unit cannot be started when key is removed from the switch. Precision “SPARK FREE “spin-balanced impeller for smooth operation and minimal noise.
• Precision “SPARK FREE” spin-balanced impeller for smooth operation and minimal noise.
• Reusable clear plastic collector bag for improved dust collection efficiency. Equipped with 2-micron filter bag. (Not included on the “CF” canister filter model). The intake screen prevents larger pieces from jamming in the impeller.
• Heavy-duty collection bag made from extra-thick, transparent, recyclable plastic. ETL( Electrical Testing Laboratories) certified.

General 10-110 CF M1 2 HP 1550 CFM Canister Filter Dust Collector Specifications

• STYLE(TYPE): Canister Filter
• INLET DIAMETER: 1×6″ (152 mm) / 2×4″ (102 mm)
• AIRFLOW CAPACITY: 1550 CFM
• BLOWER WHEEL DIAMETER: 12″ (305 mm)
• SOUND RATING : 80 to 90 dB
• FILTER BAG/CANISTER SIZE : 20 ¼” x 24¾” (Φ515 x 630 mm)
• BAG CAPACITY : 42 gallon (190.9 L)
• STATIC PRESSURE: 11¼” of water
• OVERALL DIMENSIONS (L x W x H): 37⅜” x 29½” x 76⅜” (950 x 750 x 1940 mm)
• MOTOR : 2 HP, 110/220 V, 1 Ph, 15 A
• WEIGHT (N.W/G.W) : 117⅜lbs (53.25 kg)/137½lbs(62.35kg)
• SWITCH : Safety switch with key

General 10-110 CF M1 2 HP 1550 CFM Canister Filter Dust Collector Warranty

• General’s 3 Year Limited Warranty Without Registration
• General’s 5 Year Limited Warranty When Registered within 60 Days
