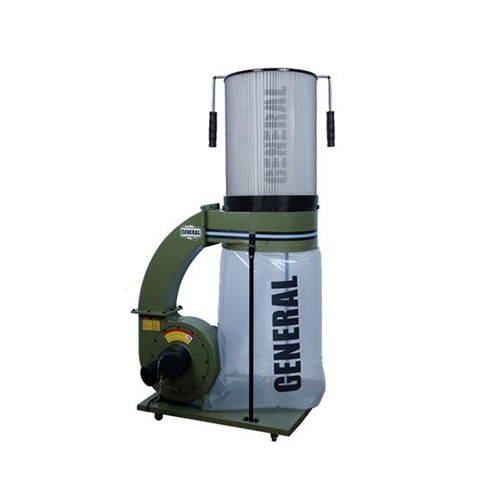

General 10-105CFM1 1-1/2HP 1250 CFM Dust Collector, Canister Filter 120 V, 1 Ph, 14 A

General 10-105 CF M1 1-1/2HP 1250 CFM Dust Collector has been designed for small to medium shops applications and can help eliminate the clean-up after wood projects. With 1250 CFM the General 10-105M1 dust collector has enough suction to take on almost any machine in your workshop, easily handling planers, jointers and table saws. The General 10-105 CF M1 woodworking dust collecting system has a totally enclosed fan cooled (TFEC) motor which provides minimal noise and allows for easy movement from machine to machine. “SMART” cone technology built in which improves chip separation and prevents clogging the bag. The 10-105 CF M1 has the option to have one 6″ dust collection port or two 4″ dust collector ports. Generals 10-105 CF M1 dust collector filters debris down to 1 micron while exhausting the air back into your shop, with debris larger than 1 micron falling into the heavy duty disposable plastic bottom bag. The 10-105CFM1 features a pleated, high-efficiency top filter that removes ultra-fine dust particles down to a low as 1 micron, from the air while you work. Additionally the General 10105CFM1 pleated filter cartridge has more filter surface area than a traditional cloth bag preventing it from clogging prematurely and provides more air flow. The GEN-10-105 CF M1 canister has a built in hand crank that cleans the cartridge as you turn it making it easy to clean. The General 10-105 CF M1 has been designed with safety in mind, with a safety On/Off switch with key that ensures the unit cannot be started when key is removed from switch.

General 10-105CFM1 1-1/2HP 1250 CFM Dust Collector, Canister Filter Features

• Pleated, high-efficiency top filter that removes ultra-fine dust particles
• Heavy duty base, mounted on four precision swivel casters with handle, allowing total mobility & stability while moving from machine to machine
• 1 ½ HP Totally enclosed fan cooled (TFEC), permanently lubricated motor. Designed for small shop applications with a continuous duty rating
• “SMART” cone design improves chip separation and clogging the bag/canister
• 1250 CFM
• 1-6” or 2-4” inlet ports
• Precision aluminum finned spin-balanced impeller for smooth operation & minimal noise
• Heavy-duty metal frame between body of fan and collector
• Collector body mounted on three (3) heavy-duty support brackets
• Re-useable heavy-duty collection bag made from extra thick, transparent, recyclable plastic
• 1 Micron Canister Filter
• Quick release bag clamps with metal straps makes emptying and re-attaching easy
• Intake screen prevents larger pieces from jamming in the impeller.
• Safety On/Off switch with key, Unit cannot be started when key is removed from switch.
• ETL (Electrical Testing Laboratories) Certified

General 10-105CFM1 1-1/2HP 1250 CFM Dust Collector, Canister Filter Specifications

• INLET DIAMETERS: (1) 6” (152 mm)
• Y FITTING INLET: (2) 4” (102 mm)
• AIRFLOW CAPACITY: 1250 CFM
• BLOWER WHEEL DIAMETER: 12-3⁄4” (323 mm)
• SOUND RATING: 80 TO 85 dB
• BAG DIAMETER: 20” (508 mm)
• BAG CAPACITY: 42 GAL (190.9 L)
• STATIC PRESSURE: 9” OF WATER
• MOTOR: 1.5 HP, 120 V, 1 Ph, 14 A
• OVERALL DIMENSIONS: (L x W x H) 38” x 31 1/2” x 76” (970 x 800 x 1930 mm) – #10-105 M1
• WEIGHT: 106 LBS (48 kg) – #10-105 M1
• 130 LBS (59 kg) – #10-105CF M1

General 10-105CFM1 1-1/2HP 1250 CFM Dust Collector, Canister Filter Warranty

• General’s 3 Year Limited Warranty Without Registration
• General’s 5 Year Limited Warranty When Registered within 60 Days
