GEARWRENCH 82812 114 Pc. SAE/Metric Ratcheting Tap and Die Set

GEARWRENCH ratcheting tap and die I handle systems are perfect for the master mechanic or machine Shop. The set comes with blow molded case for safe and organized storage. A 5 degree ratcheting arc with reversible lever eliminates hand over hand turning. Twist Lock guide system reduces back walk of die guide extension adapters providing access in tight confined areas. The length of tap and die system can be extended by combining adapters and any 3/8 drive extension. Tap holders tilt down for easy access keeping taps secure and organized. The die adapter works with round and hex shaped dies. Tap and die sizes include 4-40 to 3/4 and 3 mm to 18 mm sizes.

GEARWRENCH 82812 114 Pc. SAE/Metric Ratcheting Tap and Die Set Features

• Die adapters work on round and hex shaped dies
• Ratcheting T-handles wind dies with a 5° swing arc and have a reversing lever to eliminate hand-over-hand turning
• Twist Lock guide system reduces the “walk back” of the die guide and keeps the dies centered while cutting
• Die adapters work with the 3/8″ drive Pass-Thru™ ratchet and socket system as well as socket accessories
• Auto-locking feature allow the tap adapters to be removed safely
• Drive extension adapters provide greater access in confined areas when used with 3/8″ drive extensions
• Ratcheting T-wrench works with GEARWRENCH Pass-Thru™ socket system
• Blow mold carrying case with tilted tap holders for easy access and storage

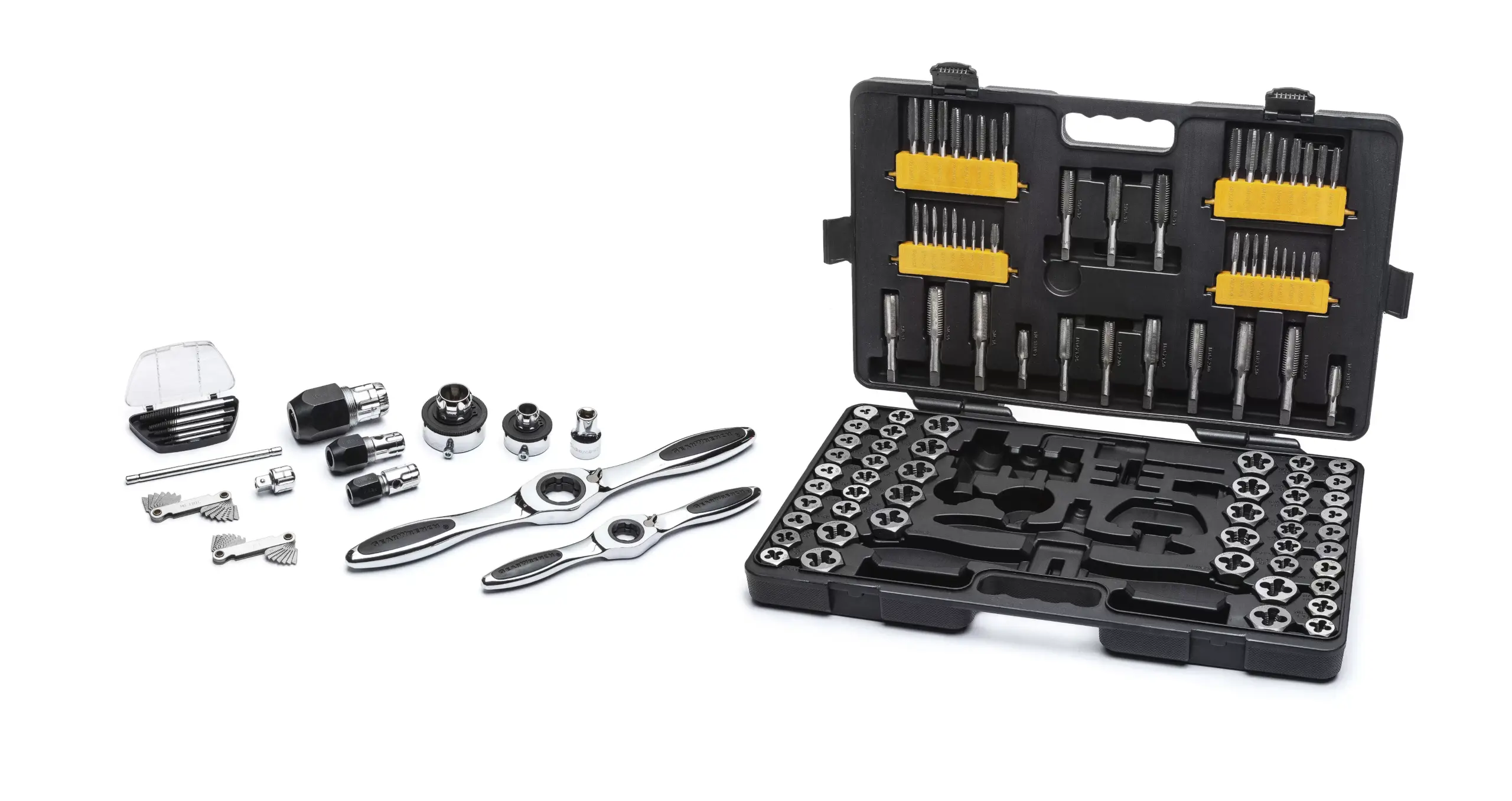

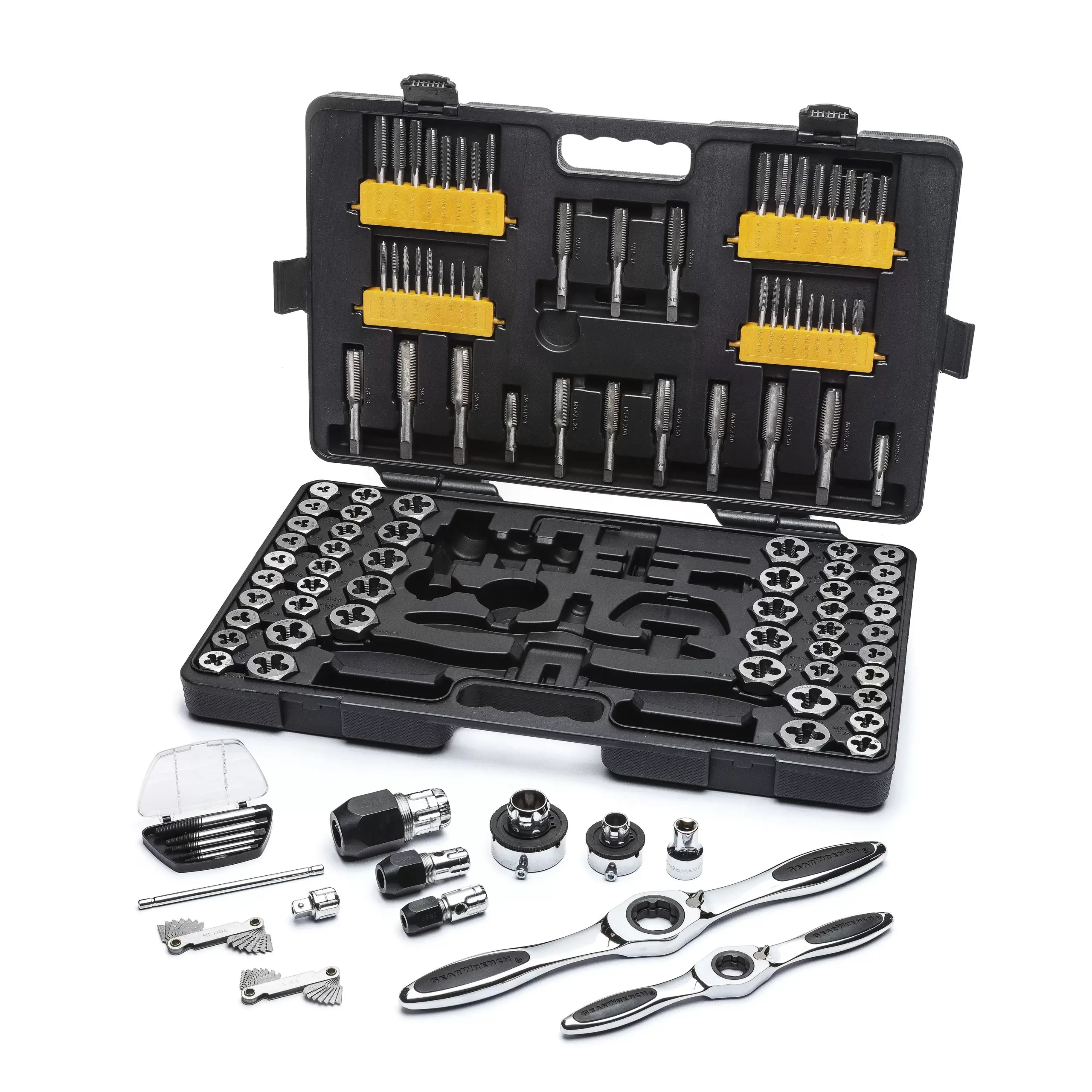

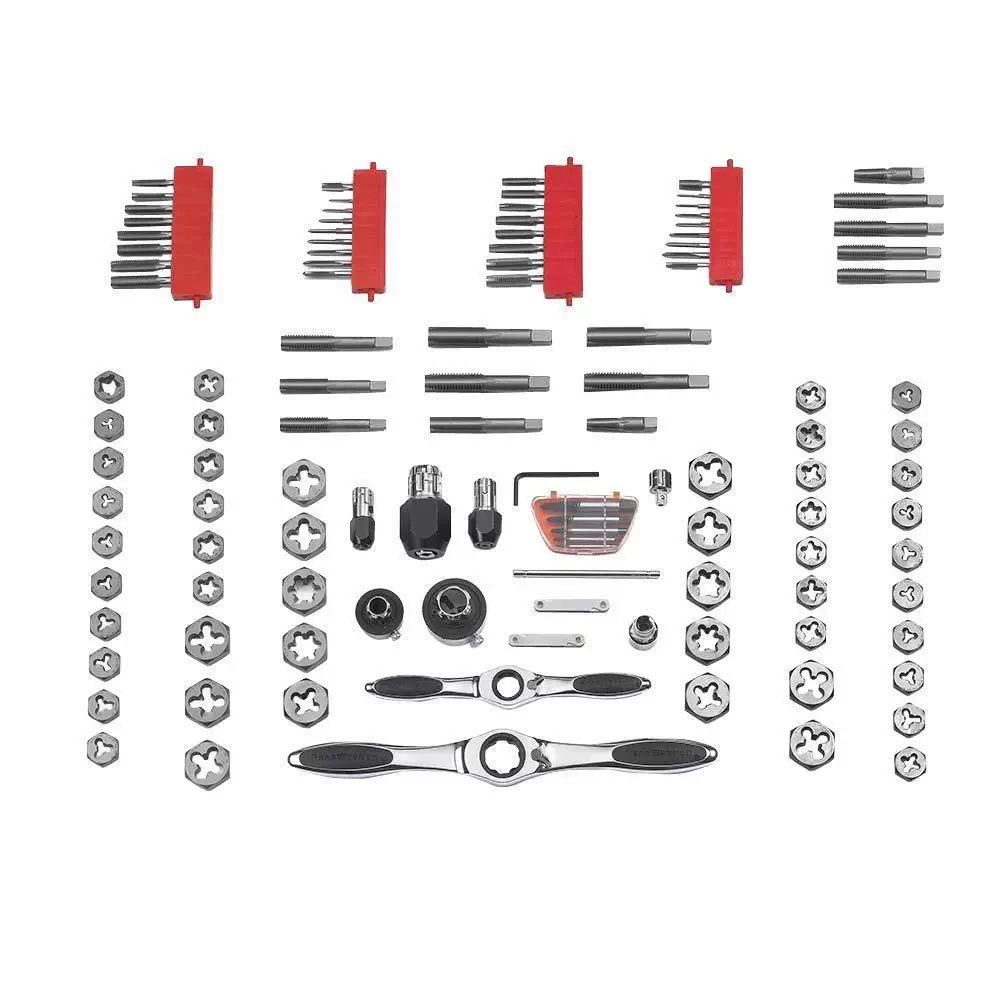

• Set includes 2 ratcheting T-handles, 3 sizes of tap adapters and 2 sizes of die adapter, 2 extension adapters and a sliding T for the adapters, a 4mm hex key, 5 screw extractors, SAE and Metric thread gauges, and 48 taps and dies in SAE and Metric sizes ranging from 4-40 to 3/4” and 3mm to 18mm
• Meets or exceeds ANSI, ASME, DIN, and Federal specifications

GEARWRENCH 82812 114 Pc. SAE/Metric Ratcheting Tap and Die Set Specifications

• Overall Length : 21.5″
• Prop 65 : WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
• Packaging : Boxed
• Weight (Catalog) : 18.25″
• Warranty : Limited Lifetime on Wrenches & Adpaters – No Warranty on Taps & Dies
• Overall Height : 3.5lbs
• UPC : 099575828126
• Included Storage : Blow Mold Case
• Overall Width : 13.5″
• Set Piece Count : 114

GEARWRENCH 82812 114 Pc. SAE/Metric Ratcheting Tap and Die Set Manufacturer Warranty

• Limited Lifetime on Wrenches & Adpaters – No Warranty on Taps & Dies
