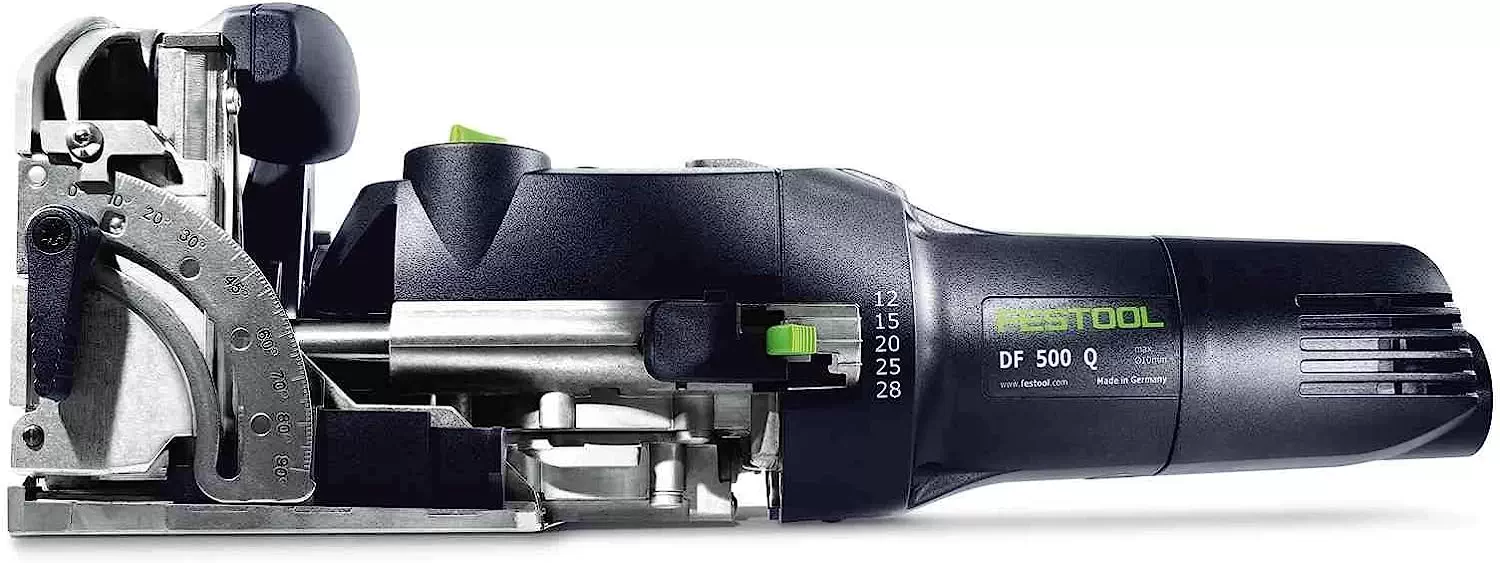

Festool 576419 DOMINO Joiner DOMINO DF 500 Q-Plus

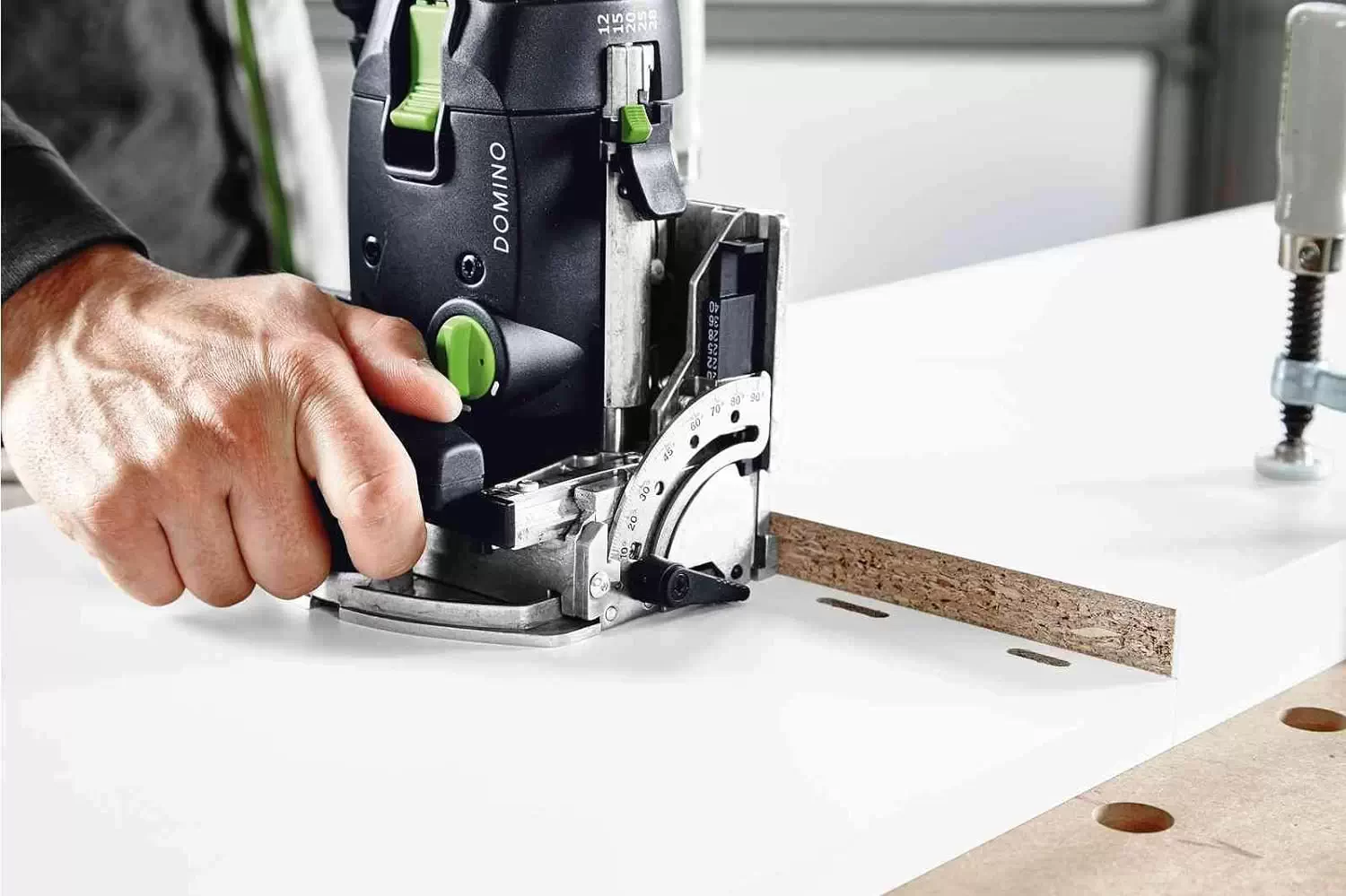

The Festool 576419 DOMINO Joiner DOMINO DF 500 Q-Plus is the perfect addition to any woodworking show as joining has always been a slow, difficult process. Never again, thanks to the Festool DOMINO joining system. The system consists of the DOMINO joiner and pre-fabricated, beech and sipo DOMINO tenons. The DOMINO joiner, with its revolutionary cutting method, simple indexing features and adjustable mortise sizing, makes flawless mortises every single time. The DOMINO tenon is equally as impressive – it is 100% rotation-proof and far stronger than either biscuits or dowels. It also has a large gluing surface area for extra strength.

Please note that the DOMINO DF 500 can be purchased as a set, which includes the optional trim and cross stop. See purchasing options below

Please note: Festool offers a 1 Year Limited Warranty but you can add an additional 2 Years when you register your tool within 30 Days of Purchase.

Festool 576419 DOMINO Joiner DOMINO DF 500 Q-Plus Features

• Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.

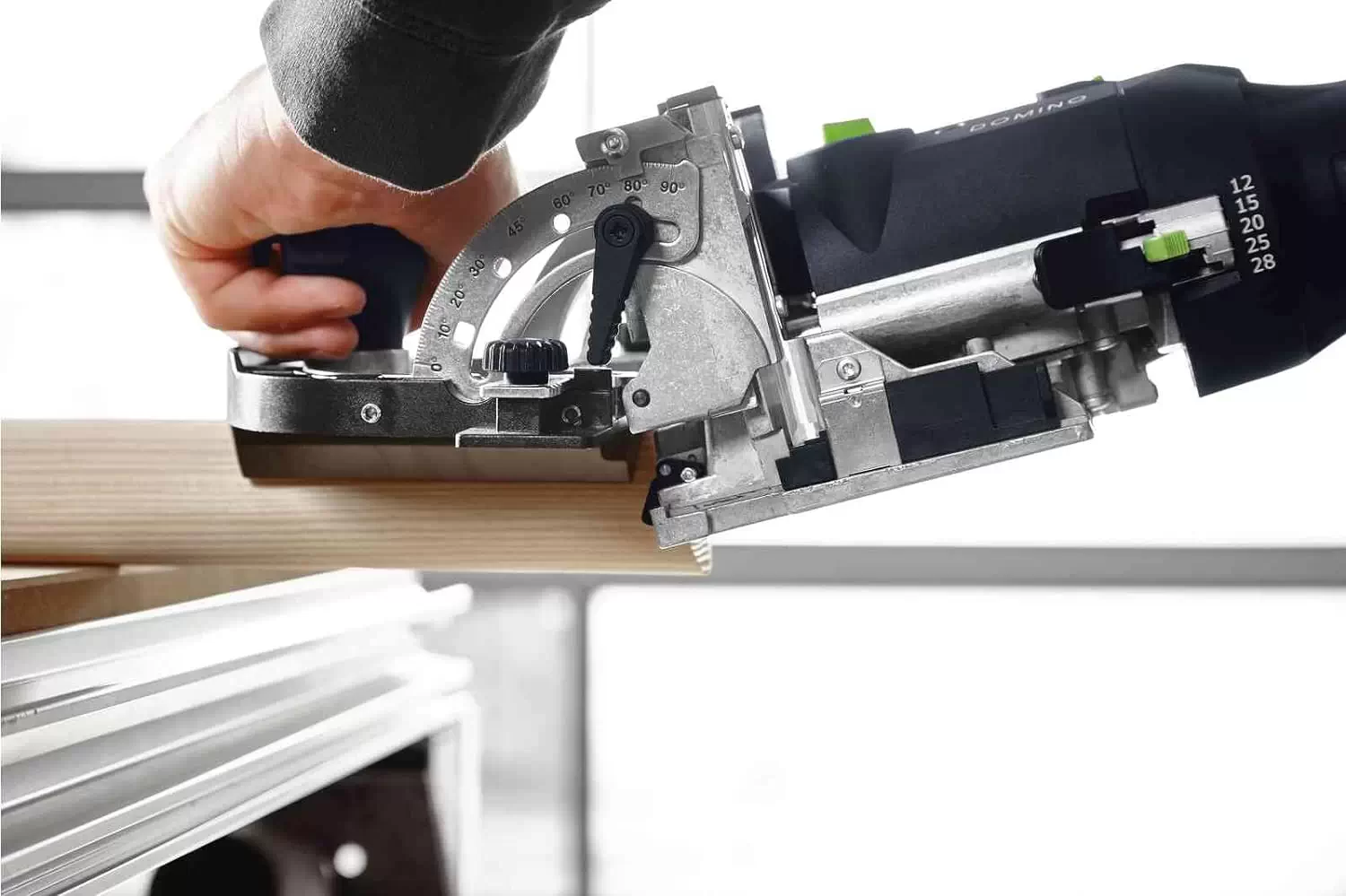

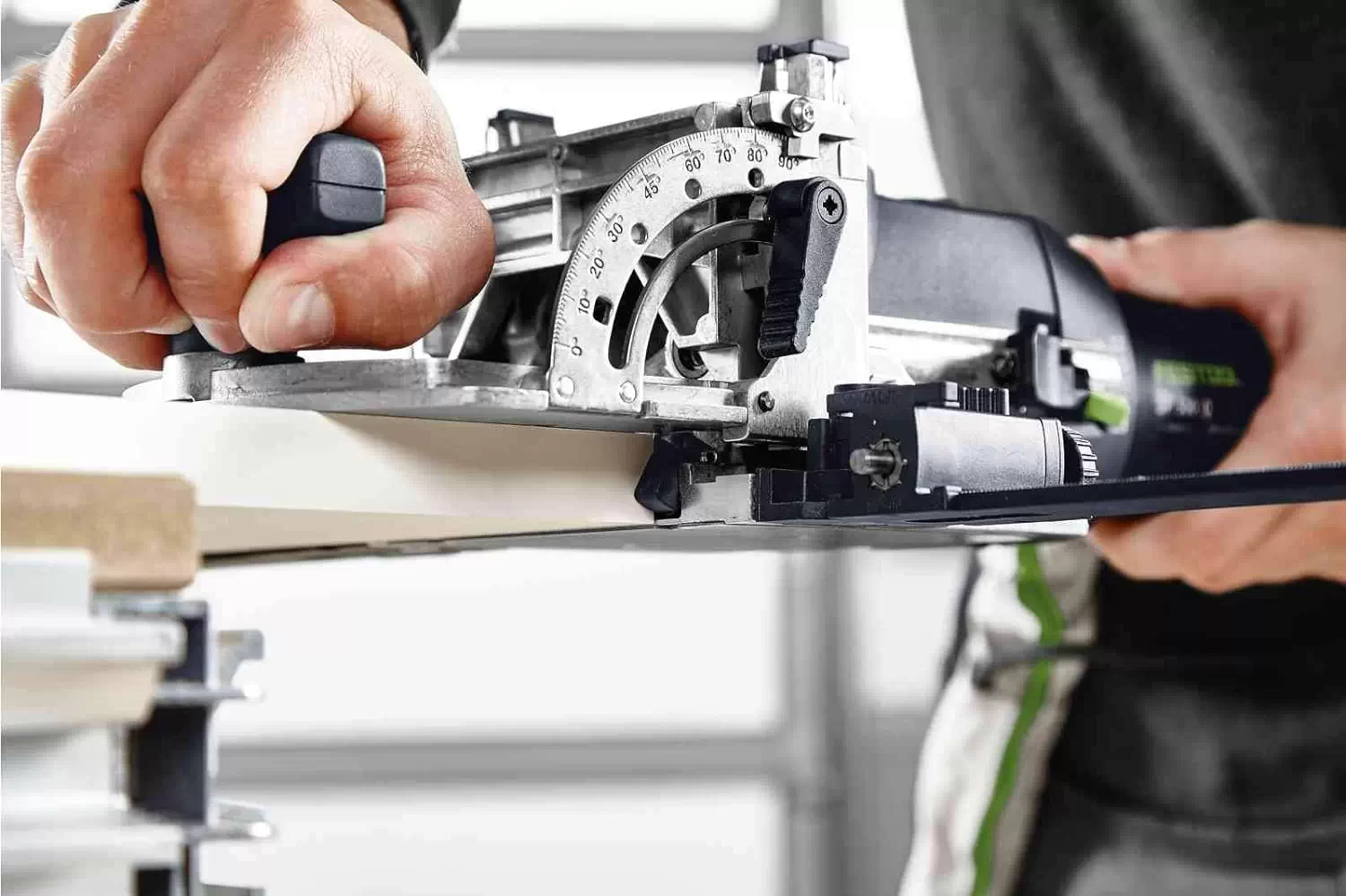

• Pivoting Fence allows you to create angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°.
• Indexing pins for quick alignment against the edge of the workpiece for accurate placement.

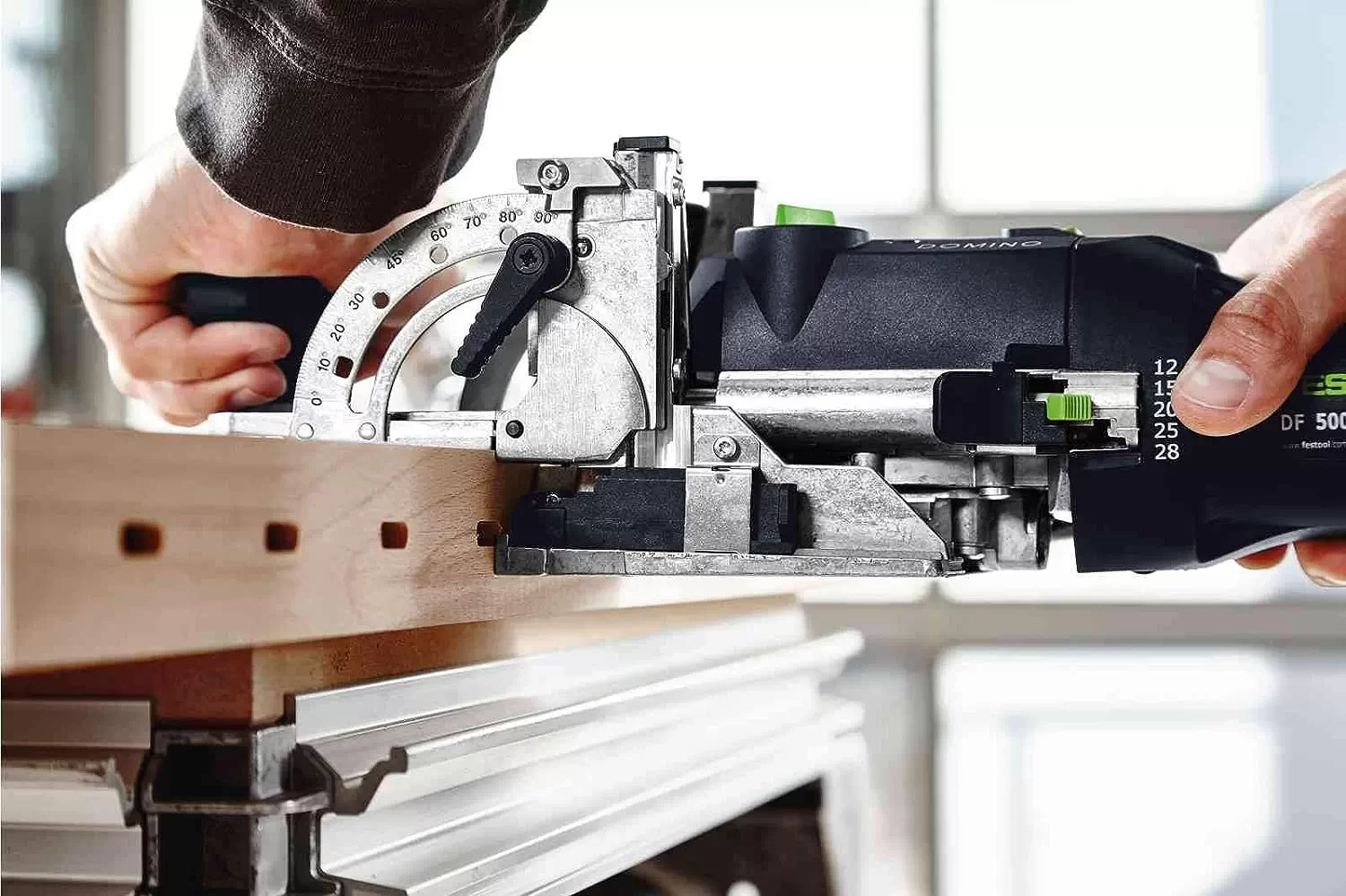

• Patented routing principle: The spiral cutter rotates and oscillates to create perfect mortises.
• Mortise Width Adjustment: Adjusting the width of the mortise allows for easier alignment when joining panels
• Positioning: With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the DOMINO joiner enables precise mortise placement and spacing.
• Pivoting fence: Fence creates angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°.

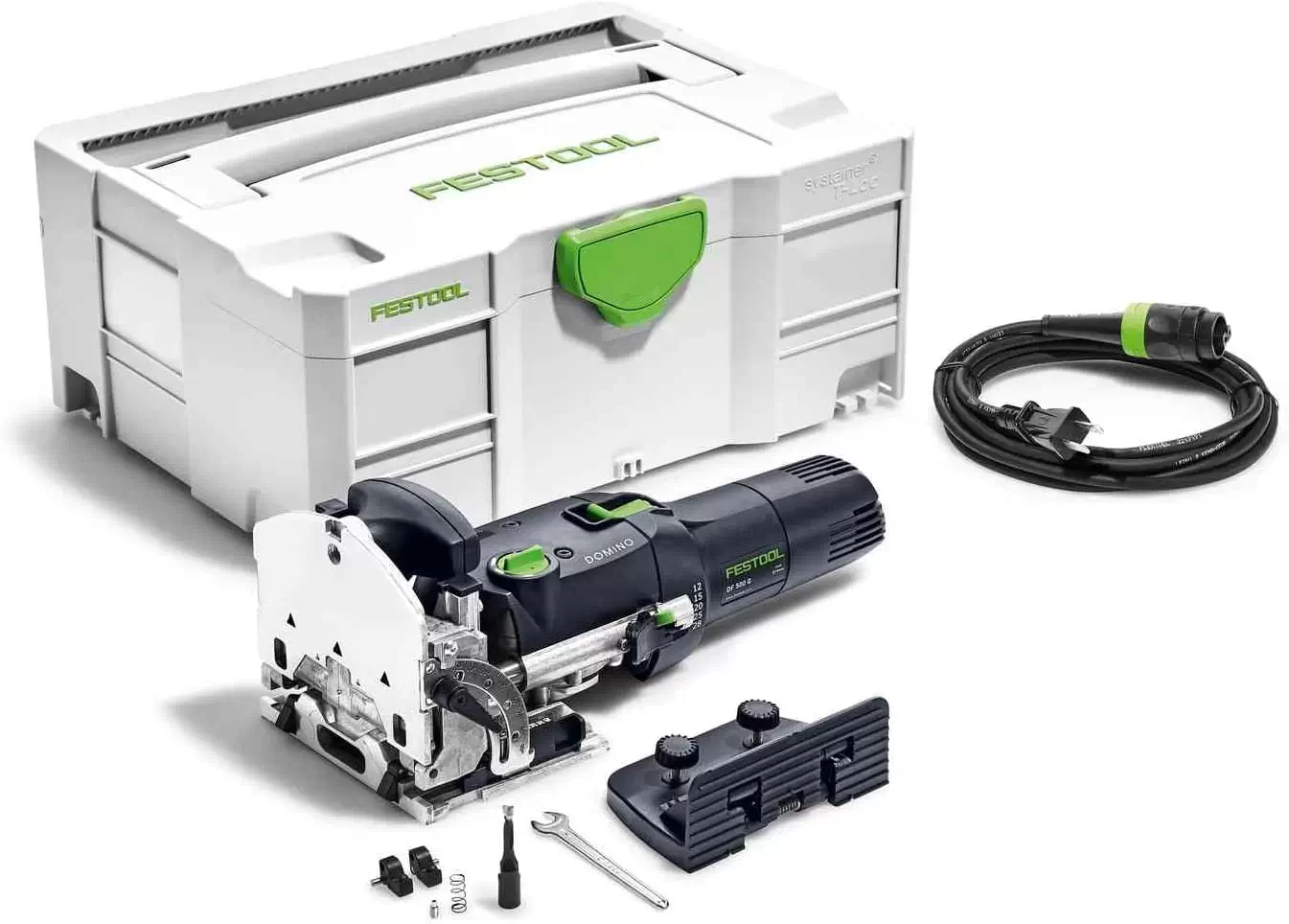

Festool 576419 DOMINO Joiner DOMINO DF 500 Q-Plus Includes

• DOMINO DF 500 7/32″ (5 mm) cutter D 5-NL 20 HW-DF 500
• Support Bracket ZA-DF 500/700
• open ended spanner, WAF 8
• plug it-power cable (4 m) SJO 18 AWG-4
• Systainer SYS3 M 187

Festool 576419 DOMINO Joiner DOMINO DF 500 Q-Plus Specifications

• Idle engine speed 25 500 RPM
• Mitre routing 0 – 90 °
• Max. routing depth 1-1/16″ (28 mm)
• Dust extraction connection dia. 1-1/16″ (27 mm)
• Weight 7.72 lbs (3.5 kg)
• Drive type Mains
• Routing height adjustment 1/8″ (5 mm) – 1-3/16″ (30 mm)
• Cable length 13.123 ft (4 m)
• DOMINO slot cutter dia. 3/16″ (4 mm)/1/8″ (5 mm)/1/4″ (6 mm)/5/16″ (8 mm)/3/8″ (10 mm)
• Power consumption 420 watt
• Depth stop for routing depth 12, 15, 20, 25, 28 mm

Festool 576419 DOMINO Joiner DOMINO DF 500 Q-Plus Warranty

• Festool’s 1 Year Limited Warranty or add 2 Years when Registered within 30 Days of Purchase
