Experience the incredible power of the Festool 576118 TS 75 plunge cut saw. No other saw comes close to its power and pinpoint accuracy. Capable of cutting material that is 2-3/4″ thick, this saw will leave an edge that is both burn and splinter-free, creating edges that are clean enough to glue without any further prep work. The TS 75 is suitable for cutting solid doors, truing rough lumber, cutting out window frames, and a host of other applications. Save time and create matched panels by cutting stacked sheet goods with one cut. Try the TS 75 once, and you will never look back.
Please note: Festool offers a 1 Year Limited Warranty but you can add an additional 2 Years when you register your tool within 30 Days of Purchase.
Festool 576118 8-1/4″ Plunge Cut Track Saw TS 75 EQ-F-Plus Features
- When used with Festool guide rails, you can achieve perfectly straight and splinter-free cuts.
- Spring-loaded riving knife (splitter) keeps the cut kerf open so that the material does not pinch the blade. This reduces the chance of kickback.
- The slip clutch helps to minimize the risk of a kickback and minimizes wear on the blade, gear case, and motor.
- Blade changes are easier and safer using the FastFix system which locks switch and arbor simultaneously for easy arbor bolt removal.
- Power: The TS 75 is our most powerful plunge cut saw, providing enough power to slice through the toughest of materials with little concern for swirl or burn marks.
- Depth Of Cut: At 2 3/4 inch depth of cut, the TS 75 can power through thick stock with ease.
- Slip Clutch: A perfect cut the first time, every time, with laser-straight, splinter-free cuts.
- Guide rail precision: The TS 75 makes the actual cut right on the edge of the scribe line, even on bevel cuts.
- Scribe Line = Cut Line: Spring-loaded riving knife (splitter) retracts into the housing during plunge cuts. The riving knife keeps the cut kerf open so that the material does not pinch the blade. This reduces the chance of kickback, leaving you in control of the operation.
- Riving knife: Variable speed allows you to match the speed of the saw to the material. The electronics also maintain a consistent speed under load, improving cut performance and protecting the saw’s motor from thermal and current overload.
- MMC Electronics: Blade changes are easier and safer using the FastFix system. When engaged, the power switch and arbor are locked simultaneously. The saw is also locked into a position to facilitate easy arbor bolt removal.
Festool 576118 8-1/4″ Plunge Cut Track Saw TS 75 EQ-F-Plus Uses
- Precise circular in materials up to 75 mm thick
- Cutting interior doors to length using guide rail and circular saw
- Manufacturing expansion joints in parquet flooring and false joints
- Cutting chipboard to size
- Cutting and processing plasterboard

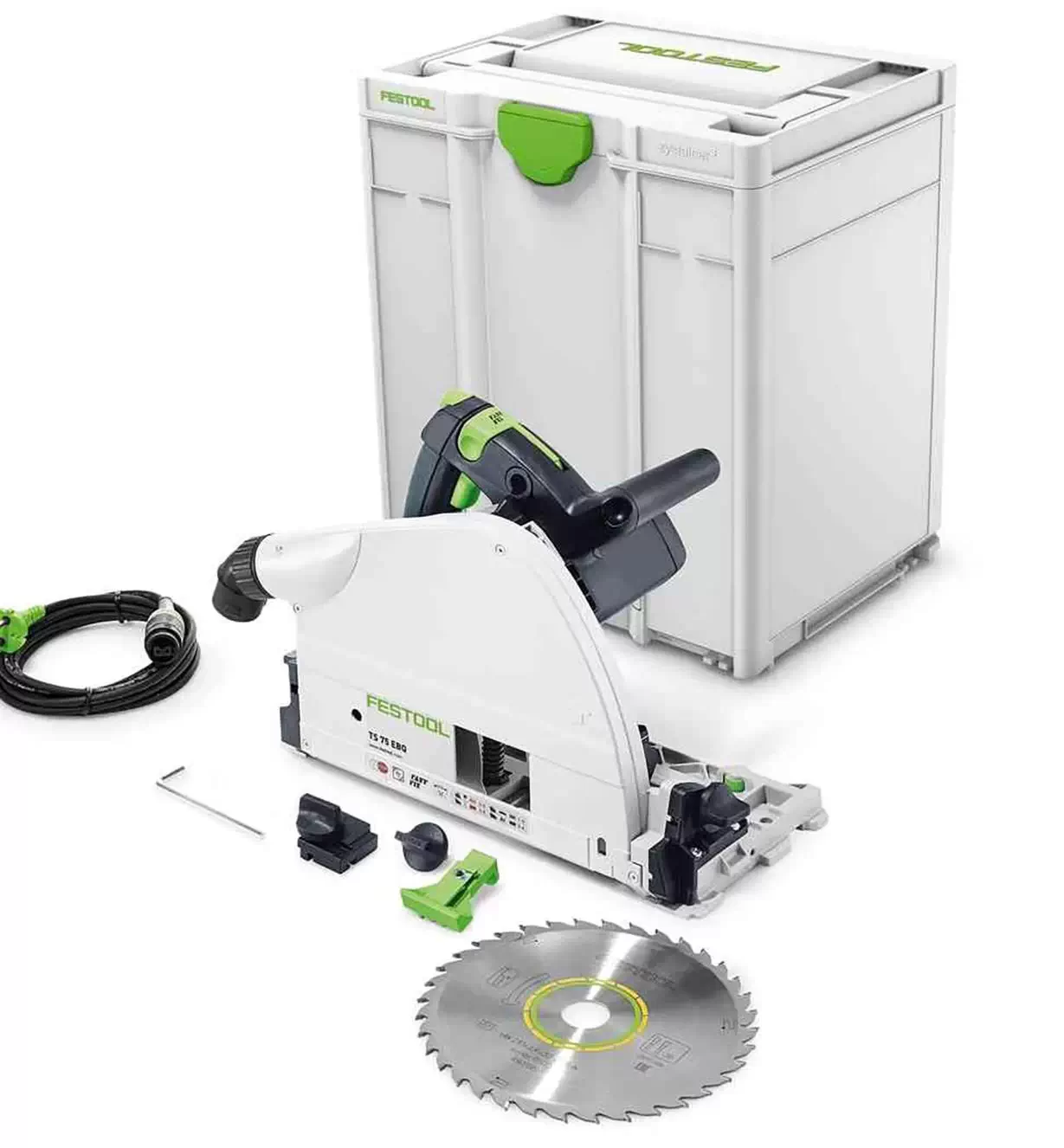

Festool 576118 8-1/4″ Plunge Cut Track Saw TS 75 EQ-F-Plus Includes
- Hex key 5 mm
- HW Standard Blade W36 HW 210X2,4X30 W36
- Plug it-power cable (4 m) SJO 16 AWG-4
- Sight window
- Splinterguard
- Systainer SYS3 M 437
Festool 576118 8-1/4″ Plunge Cut Track Saw TS 75 EQ-F-Plus Specifications
- Idle engine speed 1 350 – 4 400 RPM
- Cable length 4.00 m
- Saw blade diameter 8-1/4” (210 mm)
- Drive type Mains
- Cutting depth at 45° 2-1/8” (55 mm)
- Dust extraction connection dia. 1-1/16″/1-7/16″ (27/36 mm)
- Power consumption 1 600 watt
- Cutting depth 0″ – 3” (0 – 75 mm)
- Angular range 0 – 47 °
Festool 576118 8-1/4″ Plunge Cut Track Saw TS 75 EQ-F-Plus Warranty
- Festool’s 1 Year Limited Warranty or add 2 Years when Registered within 30 Days of Purchase
