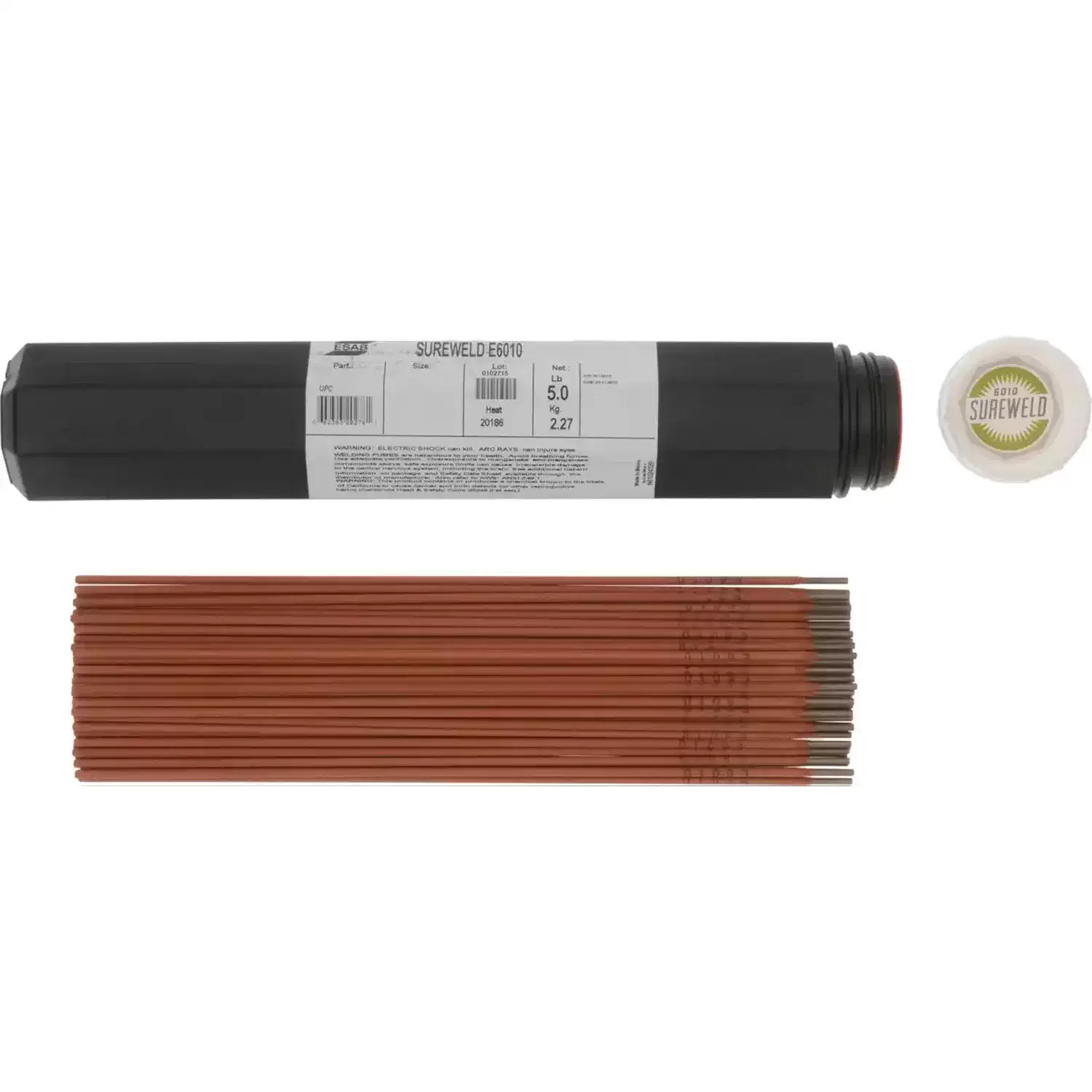

ESAB 812000040 ELECTRODE, E6010 X 5/32″ SUREWELD 5LB

The ESAB 812000040 Sureweld 10P Plus E6010 Stick Electrode is a 5/32″ diameter, deep-penetrating electrode designed for pipe welding, structural fabrication, and heavy-duty repairs. Packaged in a 10 lb hermetically-sealed can, this cellulosic-coated electrode provides high arc force, deep penetration, and excellent fusion—even on rusted, painted, or contaminated steel. With a tensile strength of 86.9 ksi and DCEP (Direct Current Electrode Positive) compatibility, it is an ideal choice for welders working on API 5L pipeline grades, structural steel, and pressure vessels.

For professionals working in pipeline welding, shipbuilding, or construction, this E6010 electrode delivers fast, forceful arc action with high deposition rates. It is designed for all-position welding, making it perfect for vertical-up, overhead, and downhill pipe welding applications. Whether in industrial fabrication or emergency repair work, this electrode ensures reliable, high-strength welds in single-pass and multi-pass welding operations.

Features

• Deep Penetration Arc: Ensures strong fusion even on rusted, dirty, or painted surfaces.
• Fast-Freezing Slag: Allows for smooth, controlled welding in all positions.
• Forceful Arc Action: Ideal for root passes and open-gap welding on pipes and structural steel.
• High Weld Strength: Provides 86.9 ksi tensile strength and 72.9 ksi yield strength as welded.
• All-Position Welding: Works in flat, horizontal, vertical-up, vertical-down, and overhead applications.
• Designed for DCEP (Direct Current Electrode Positive): Ensures optimal performance with DC power sources.
• Meets AWS A5.1 Standards: Guarantees high-quality performance for professional welding applications.

Markets

• Pipeline Welding: Engineered for API 5L grade steel used in oil and gas pipelines.
• Structural Steel & Construction: Ideal for bridges, buildings, and steel framework.
• Shipbuilding & Marine Welding: Used for hull repairs, deck welding, and ship structures.
• Pressure Vessel & Boiler Fabrication: Provides high-strength welds for tanks and pressure systems.
• Field Repairs & Maintenance: A go-to choice for emergency welding in harsh environments.

Specifications

• Item: Stick Electrode
• Material: Carbon Steel
• Overall Diameter: 5/32″
• Overall Length: 14″
• Tensile Strength (As Welded): 86.9 ksi
• Yield Strength (As Welded): 72.9 ksi
• Elongation (As Welded): 25%
• AWS Classification: E6010
• Welding Process: Stick Welding (SMAW)
• Welding Current: DCEP
• Compatible Material Types: Carbon Steel (API 5L, Grade A, A25, B, X42)
• Welding Positions: Flat, Horizontal, Overhead, Vertical-Down, Vertical-Up
• Standards: AWS A5.1
• Finish/Coating: Cellulosic
• Container Type: Hermetically-Sealed Can
• Container Size: 10 lb

For welders working in pipeline, structural, or pressure vessel applications, the ESAB Sureweld 10P Plus E6010 5/32″ Stick Electrode delivers deep penetration, strong arc force, and high weld strength. Whether welding open-root joints, structural steel, or pipeline applications, this electrode provides fast, efficient, and reliable results in demanding field conditions.
