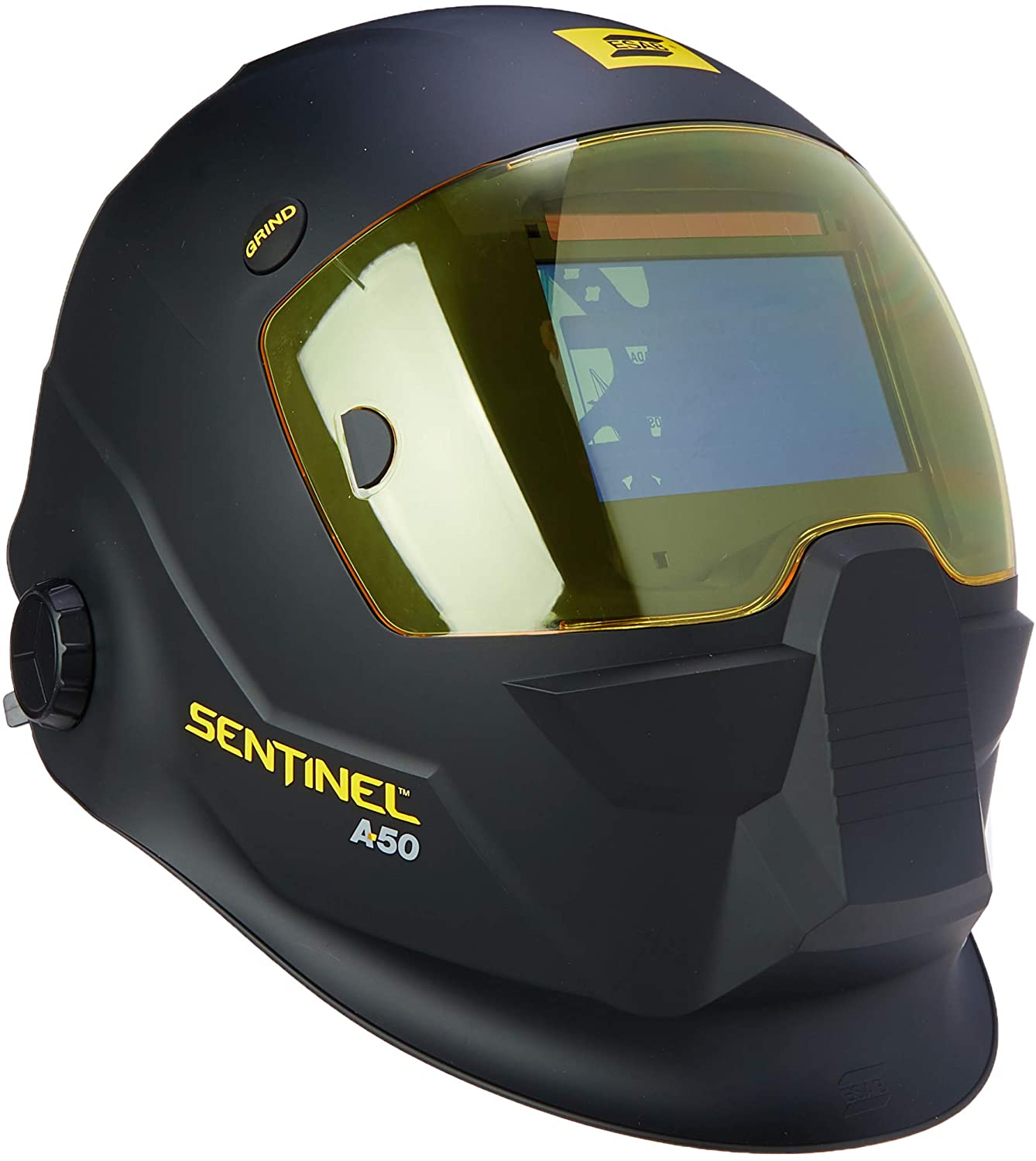

The ESAB 0700000800 Sentinel A50 helmet has been designed to meet the needs of a variety of welders, providing a high tech lightweight shell to protect from heat, sparks and spatter. Years of welding have trained you to know exactly what you need in a hood: crucial comfort, large lens, and next generation technology. Every special operation needs special equipment that gets the job done, and when it comes to your helmet, SENTINEL™ is worn by the best.
ESAB 0700000800 Sentinel A50 Auto Darkening Welding Helmet Features
- Revolutionary shell design – high impact resistance nylon.
- Halo™ headgear – ergonomic, infinitely-adjustable 5 point head gear provides extreme comfort and balance. Low-profile design, central pivot point allows for maximum head clearance while helmet is in the up position.
- 3.93 x 2.36 in. (100 x 60 mm) viewing area. 1/1/1/2 –5-13 ADF.
- Color touch screen control panel with 8 separate memory settings and externally activated shade 4 Grind Button.
- Hard hat adapter option available for use with ESAB hard hat (excluding Canada).
ESAB 0700000800 Sentinel A50 Auto Darkening Welding Helmet Specifications
- Cartridge Dimensions: 5.2 x 4.5 x 0.35 in. (133 x 114 x 9 mm)
- Viewing Area: 3.93 x 2.36 in. (100 x 60 mm)
- Lens Shade: DIN 5-8/9-13
- Power Supply: Solar cell plus battery replaceable. (2 x CR2450 lithium). Alerts when low battery.
- Sensors: 4
- Switch Time: 1/25,000 s from light to dark
- Classification: 1/1/1/2
- Standards: DIN Plus, CE, EN 175, EN 379, EN 166, ANSI Z87.1, CSA Z94.3, AS/NZS 1338.1
- Weight: 1.4 lbs. (640 g)
ESAB 0700000800 Sentinel A50 Auto Darkening Welding Helmet Welding Process
- Plasma Cutting
- Oxy-Fuel Cutting
- SMAW/MMA (Stick)
- GTAW (TIG)
- GMAW (MIG/MAG)
- PAW – Plasma Arc Welding
- Grinding
ESAB 0700000800 Sentinel A50 Auto Darkening Welding Helmet Application Range
- MIG, TIG and STICK – Range 5-13 ADF
- Low Amperage TIG Rating – ≥ 2 amps
- MIG/TIG Pulse
- Plasma Welding
- Grinding
- Oxyfuel Cutting/Gouging
- Plasma Cutting/Gouging
- Carbon Arc Gouging
ESAB 0700000800 Sentinel A50 Auto Darkening Welding Helmet Common Replacement Parts
- Front Cover Lens Clear HD: 0700000823
- Front Cover Lens Amber HD: 0700000824
- Front Cover Lens Clear: 0700000802
- Front Cover Lens Amber: 0700000803
- SENTINEL Helmet Shell: 0700000804
- Auto-Darkening Filter (excluding batteries): 0700000806
- 2 x CR2450 lithium battery: 0700000807
- Inside Cover Lens: 0700000808
- Headgear Assembly (including sweat bands): 0700000809
- Front Sweat Band: 0700000810
- Headgear: 0700000811
- Rear Sweat Band: 0700000812
- Magnifying Glass +1.0 Diopter: 0367951001
- Magnifying Glass +1.5 Diopter: 0367951002
- Magnifying Glass +2.0 Diopter: 0367951003
- Magnifying Glass +2.5 Diopter: 0367951004
- Sentinel Hard Hat Adapter*: 0700000619
- Concept Hard Hat Yellow: 0700000052
- Sentinel Bandana: 0700000821
