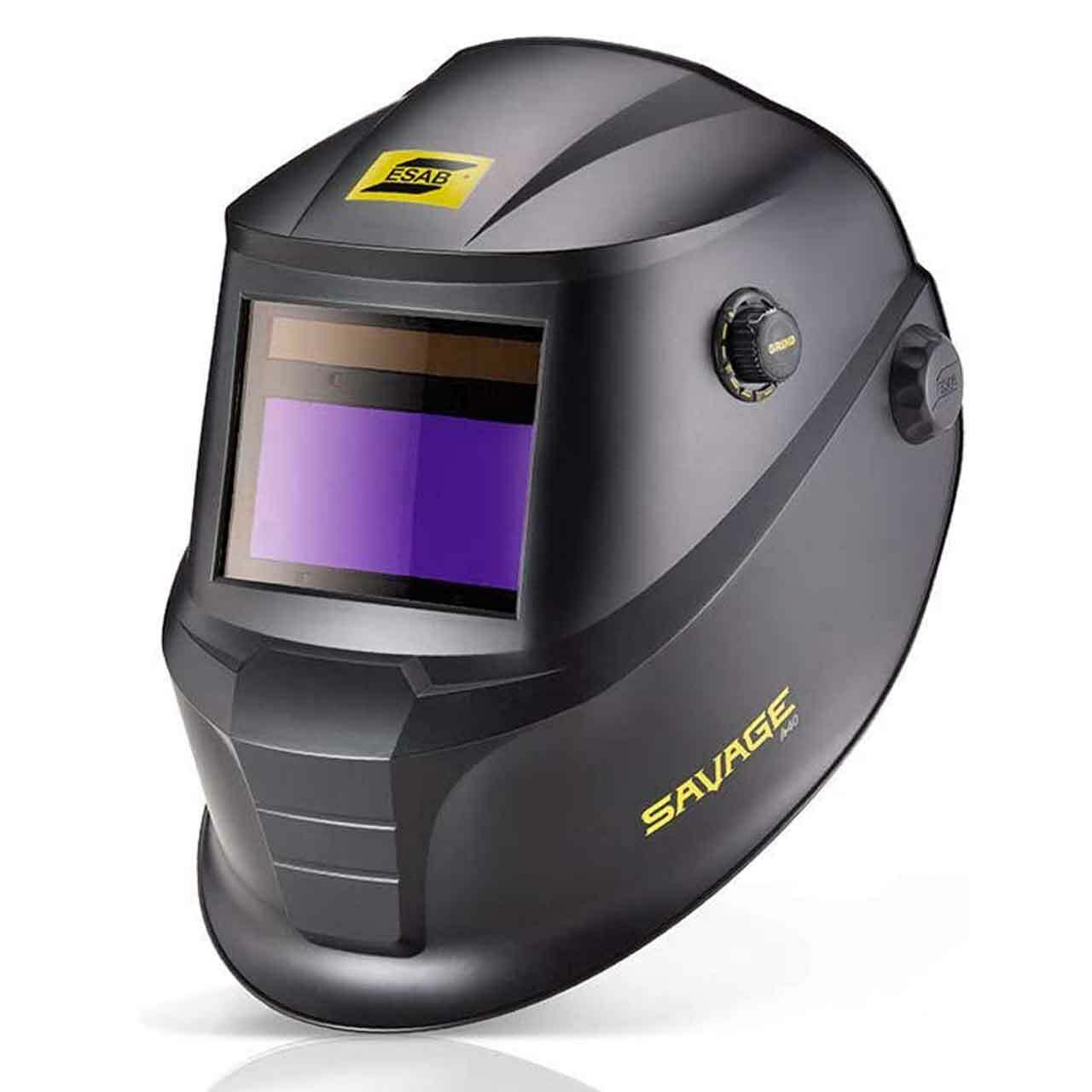

ESAB 0700000490 Savage A40 Black Auto Darkening Welding Helmet, Four Shade 9-13

The ESAB 0700000490 SAVAGE A40 black helmet has been designed to meet the needs of a variety of welders, providing a high tech lightweight shell to protect from heat, sparks and spatter. Utilizing the latest ADF technology, the welding lens gives a high clarity of view with True Color, resulting in an excellent optical quality. The SAVAGE A40 helmet provides ideal functionality, performance and comfort to the occasional welder, maintenance and construction workers through to the professional welder.

ESAB 0700000490 Savage A40 Auto Darkening Welding Helmet Features

• External shade adjustment between DIN 9 and DIN 13 and an optical class of 1/1/1/2. Delay and sensitivity can be adjusted from the inside
• Four arc sensors for higher auto darkening response
• Wider coverage and a larger viewing area of 100 x 50 mm (3.93 x 1.96 in.) that offers a wide field of vision and increased spatial awareness
• Sensitivity control is an adaptable feature useful when welding low amp TIG for better reaction to darker arc light
• Delay control enabling the welder to set how long the lens stays dark after the welding arc stops. Short delay helps get the job done faster during tack welding, while longer delay is useful for high amperage welding
• Externally activated Grind Button. Shade 4 Grind Mode
• True Color allowing for a brighter view and enhanced color definition

ESAB 0700000490 Savage A40 Auto Darkening Welding Helmet Specifications

• Black Helmet
• Cartridge Dimensions: 110 x 90 x 7.8 mm (4.33 x 3.54 x 0.3 in.)
• Viewing Area: 100 x 50 mm (3.93 x 1.96 in.)
• Lens Shade: DIN 4, 9-13 Automatic
• Power Supply: Solar cell, replaceable battery (1*CR2450 lithium). Alerts when low battery.
• Sensors: 4
• Switch Time, from Dark to Light: 0.1-0.9 s
• Switch Time Light to Dark at 23°C: 0.07 ms
• Classification: 1/1/1/2
• Standards: CE EN379 and EN175, ANSI , CSA, AS/NZS
• Weight: 500 g (1.1 lbs.)

ESAB 0700000490 Savage A40 Auto Darkening Welding Helmet Welding Process

• Plasma Cutting
• Oxy-Fuel Cutting
• SMAW/MMA (Stick)
• GTAW (TIG)
• GMAW (MIG/MAG)
• PAW – Plasma Arc Welding
• Grinding

ESAB 0700000490 Savage A40 Auto Darkening Welding Helmet Common Replacement Parts

• Head Gear: 0700000483
• Sweat Band: 0700000414
• Front Cover Lens: 0700000010
• Inside Cover Lens: 0700000482
• ADF Cradle: 0700000418
• Lens Retainer with Screw: 0700000419
• Magnifying Lens +1.0 Diopter: 0700000084
• Magnifying Lens +1.5 Diopter: 0700000085
• Magnifying Lens +2.0 Diopter: 0700000086
• Magnifying Lens +2.5 Diopter: 0700000087
• Proban Hood: 0000593269
