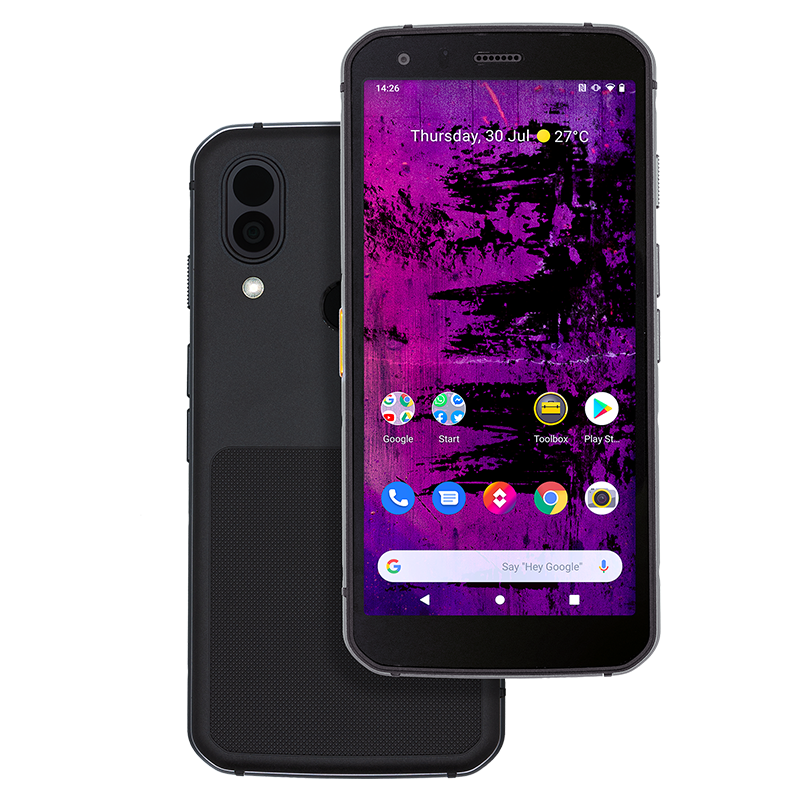

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone

The Cat S62 Pro Ultimate Workphone with FLIR® Thermal Imaging & Smartphone has been designed with the industrial user in mind. Should you wish to outfit your crew, please be sure to reach out to our industrial sales team for package programs designed to save you money!

The Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone features several exclusive enhancements providing even more thermal detail to help locate and diagnose the damp, the draught, the leak, the hotspot, the electrical short, the blockage or the elevated temperature. The Cat S62 Pro is powered by the highest resolution FLIR lepton available today, the FLIR Lepton 3.5 professional-grade sensor, which brings a huge 4x increase in the number of thermal pixels. Combined with FLIR’s VividIR technology, the Cat S62 Pro delivers enhanced image quality, sharper image and higher thermal resolution.

Thermal imagery can be blended with the visual image from the S62 Pro’s 12MP dual pixel Sony camera, or used with FLIR’s variable intensity MSX (Multi-Spectral Dynamic Imaging) technology that overlays linear detail from the scene onto the thermal image, providing greater context to help understand thermal images. These new features all create a more immersive and intuitive experience and ensure the Cat S62 Pro produces thermal pictures of stunning clarity. With a modern, rugged design the Cat S62 Pro is protected by a high grade aluminum body, and toughened scratch-resistant Corning® Gorilla® Glass 6.

Our third generation of the Cat S60 series has the best integrated thermal camera available in a smartphone. Highly sensitive to minute temperature differences and with substantial improvements to the thermal image quality and clarity, the S62 Pro offers significant new enhancements. Use it to discover more about the world around you, even in complete darkness; monitor, diagnose, reveal and save time. We’ve also upgraded the display to a 5.7″ FHD+ (18:9) and the memory to 6GB RAM / 128GB ROM and added a fingerprint sensor. With a faster chipset, Android 11* and a large, optimized battery, the Cat S62 Pro is the ultimate work phone.

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone Features

• Drop proof from 1.8m – Drop tested multiple times onto concrete & solid steel from up to 1.8m (6ft) to prove their rugged credentials.
• Dust proof – Designed to exceed MIL-SPEC 810H protection against dust, as well as shock, water, vibration and extreme temperatures.
• Waterproof to 1.5m – IP68 & IP69 rating system proves your phone can handle not just a brief dunk in water but also complete submersion.
• Hygienic – Wash and sanitise with soaps, hand sanitisers, anti-bacterial sprays, alcohol wipes and even bleach.
• Ultimate Workphone – The Cat S62 Pro is an advanced tool, providing instant access to professional-grade thermal imaging in a rugged smartphone – always on, always ready.
• More Thermal Detail – Providing even more thermal detail to help locate and diagnose the damp, the draught, the leak, the hotspot, the electrical short, the blockage or the elevated temperature.
• Professional-grade thermal imaging powered by the FLIR Lepton 3.5 sensor
• 4x increase in the number of thermal pixels
• 128GB ROM, Expandable via microSD™ card up to 256GB (1x SIM + 1x microSD / 2x SIM)
• Beyond Rugged: IP68 & IP69 and Mil-Spec 810H: Dustproof and drop proof to 1.8m, vibration, sand, salt mist and pressure resistant
• 5.7” FHD+ 18:9 display protected by Gorilla Glass 6
• Extended battery life – up to two days general use (4000mAh)

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone Specifications

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone BASE FEATURES

• Wireless Carrier: Unlocked
• Product Condition: New
• Bluetooth: Bluetooth 5
• Storage: 128 GB
• CPU: Qualcomm Snapdragon 660, 2.0GHz octa-core processor
• Phone Operating System: Android 10 (with upgrade available to 11)
• Battery Type: 4000mAh Non removable Lithium Ion

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone DIMENSIONS & WEIGHT

• Dimensions: 158.5 x 76.7 x 11.9mm
• Weight: 248g

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone RUGGED CREDENTIALS

• Ingress Protection IP68 and IP69: Sand, dust, dirt, water, humidity and salt mist resistant¹
• Waterproof: Up to 1.5m (5ft) for 35 minutes
• Drop-proof: Up to 1.8m (6ft) onto steel²
• MIL SPEC 810H Resistant to Vibration: Category 4
• MIL SPEC 810H Resistant to humidity and salt mist
• MIL SPEC 810H Thermal shock: handles low to high temperature differences between-30°C (-22°F) to 75°C (167°F) for up to 30mins

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone THERMAL IMAGING

• Lepton 3.5 professional grade camera
• 1440 x 1080 HD output with VividIR MSX linear overlay from visual cam
• Measurable range: -20°C to 400°C

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone BATTERY

• Capacity: 4000mAh non-removable
• Type: Non removable Lithium Ion
• Battery Life: Up to two days of battery life

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone PERFORMANCE

• Operating system: Android 11*
• CPU: Qualcomm Snapdragon 660 Octo Core 2.0GHz
• Memory: 6GB RAM
• Internal Storage: 128GB ROM, expandable via microSDTM card up to 256GB (1x SIM + 1x microSD / 2x SIM)
• Biometrics: Fingerprint sensor
• Sensors: FLIR Thermal Lepton 3.5, Fingerprint, NFC, Proximity, GPS, Ambient Light, Compass, Gyro

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone CAMERAS

• Integrated FLIR: thermal camera
• Rear-facing: 12MP dual sensor, f/1.8 aperture, large 1.4μm pixel size
• Front-facing: 8MP sensor

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone DISPLAY

• Super Bright 5.7” Display – FHD+ (1080 x 2160) 18:9 TFT LCD, wet finger/glove-on working technology**
• Glass: Corning® Gorilla® Glass 6

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone CONNECTIVITY

• 4G LTE CAT 13, VoLTE, VoWiFi
• ViLTE LTE Bands: 1, 2, 3, 4, 5, 7, 8, 20, 28, 38, 40;
• Max Download speed: 400Mbps²¹
• Bluetooth®: 5
• NFC: Yes (Android PayTM)
• Wi-Fi®: 802.11 a/b/g/n/ac (2.4 & 5GHz)
• USB: USB 2.0 / Type C USB (waterproof), quick charge 4, USB-OTG
• SIM Type: Nano SIM, dual and single SIM variants
• GPS: GPS, AGPS, Glonass, BeiDou (variant dependent), Galileo

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone DESIGN FEATURES

• Programmable Key with PTT mode
• Physical power and volume (up/down) keys Hard-wearing, non-slip rubberized TPU back LED notification (3 colours)

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone ENTERPRISE

• Android Enterprise support (AE test suite, passed) Zero-touch support
• 90-day security patches for 2yrs + 1yr ESMR cover
• EMM enrolment and key policy provisioning tested with: VMware Workspace ONE, IBM MaaS 360, SOTI, Mobile Iron

Cat S62 Pro Ultimate Workphone, FLIR® Thermal Imaging & Smartphone IN-BOX

• Charger & Type C USB Cable
• SIM Tool
• QSG & Warranty Card
• Headphones (SKU dependent)

*Network dependent

**We cannot guarantee that all gloves will work with this feature.
