Home » Shop » Bosch » Bosch RA1128 8PC Router Template Guide Set
Adams SKU: BOS-RA1128
Manufacturer Part#: Bosch RA1128 Category:
Bosch Group is the world market leader for power tools and power tool accessories

8PC Router Template Guide Set

The Bosch RA1128 8PC Router Template Guide Set offers a comprehensive solution for precision routing, including six versatile template guides, large and small dovetail guides, and two hinge radius guides to handle a wide array of professional routing applications. The set features the Bosch RA1126 Quick-Change Template Guide Adapter for seamless, tool-free changes of Bosch template guides, enhancing efficiency during detailed work. Additionally, the RA1100 Interface piece makes this adapter compatible with threaded template guides by other brands, such as Porter-Cable®, fitting common 1-3/8” counter-bore sizes. Designed to fit various Bosch routers, including mid-size, large, and palm routers, this kit is a valuable resource for users who require adaptability and precision.

Bosch 8PC Router Template Guide Set At a Glance

  • Versatile Template Guide Array: Includes six commonly used guides—ideal for dovetail joints, radius hinges, and detailed edge work.
  • Quick-Change Template Guide Adapter: Enables fast, tool-free swapping of Bosch template guides, saving time on complex jobs.
  • Enhanced Compatibility: RA1100 interface accepts Porter-Cable® and similar threaded template guides, increasing flexibility with non-Bosch templates.
  • Durable Metal Construction: Built for longevity and repeated use, providing reliability across demanding applications.
  • Extensive Router Compatibility: Works with Bosch 1613AEVS, 1617-, 1618-, 1619-, MR23-Series, and palm router plunge bases, covering most Bosch routing needs.

Markets

  • Woodworkers: Perfect for precise dovetailing, hinge routing, and custom edge work in furniture or cabinetry.
  • Cabinet Makers: Useful for quick, accurate hinge and joint routing, helping to streamline cabinetry installations.
  • Carpenters: Suitable for detailed routing needs, especially in high-precision woodwork such as door frames and staircases.
  • Construction Professionals: Offers the precision and speed necessary for large-scale projects, where quick, accurate cuts are essential.
  • DIY Enthusiasts: Accessible for home improvement tasks requiring a variety of template guides for custom and detailed work.
  • Furniture Makers: Valuable for achieving uniform joints and intricate patterns in fine furniture projects.
  • Trade Schools: Provides students with real-world experience in template and pattern routing, preparing them for diverse trade applications.

This set is ideal for professionals and tradespeople who need precise, repeatable cuts, such as in cabinetry, woodworking, or construction. Its wide compatibility and quick-change capabilities make it suitable for anyone handling multiple guide changes or using templates from various brands. The metal construction ensures durability and accuracy, making it a great choice for tradespeople looking to save time without compromising precision.

Bosch RA1128 8PC Router Template Guide Set Features

  • Versatile array of template guides – features six popular router template guides, including large and small dovetail router guides and two radius hinge guides
  • Quick-change template guide adapter – allows fast toolless change of Bosch router template guides (sold separately in a wide array of sizes)
  • Compatibility – works with the Bosch 1613AEVS, 1617-, 1618-, 1619- and MR23-Series routers, as well as with the plunge bases for Bosch palm routers
  • Enhanced versatility from RA1100 interface piece – This interface piece allows the template guide adapter to also accept Porter-Cable® and similar common threaded template guides (and reducer inserts) that fit into a 1-3/8 In. counter-bore
  • Used on Bosch Models: 1613-, 1614-, 1617-, 1618-, 1619-, PR10/20E- and MR23EVS-Series Routers, RA1160, RA1161, RA1162, RA1166, MRF01, MRP01, PR011

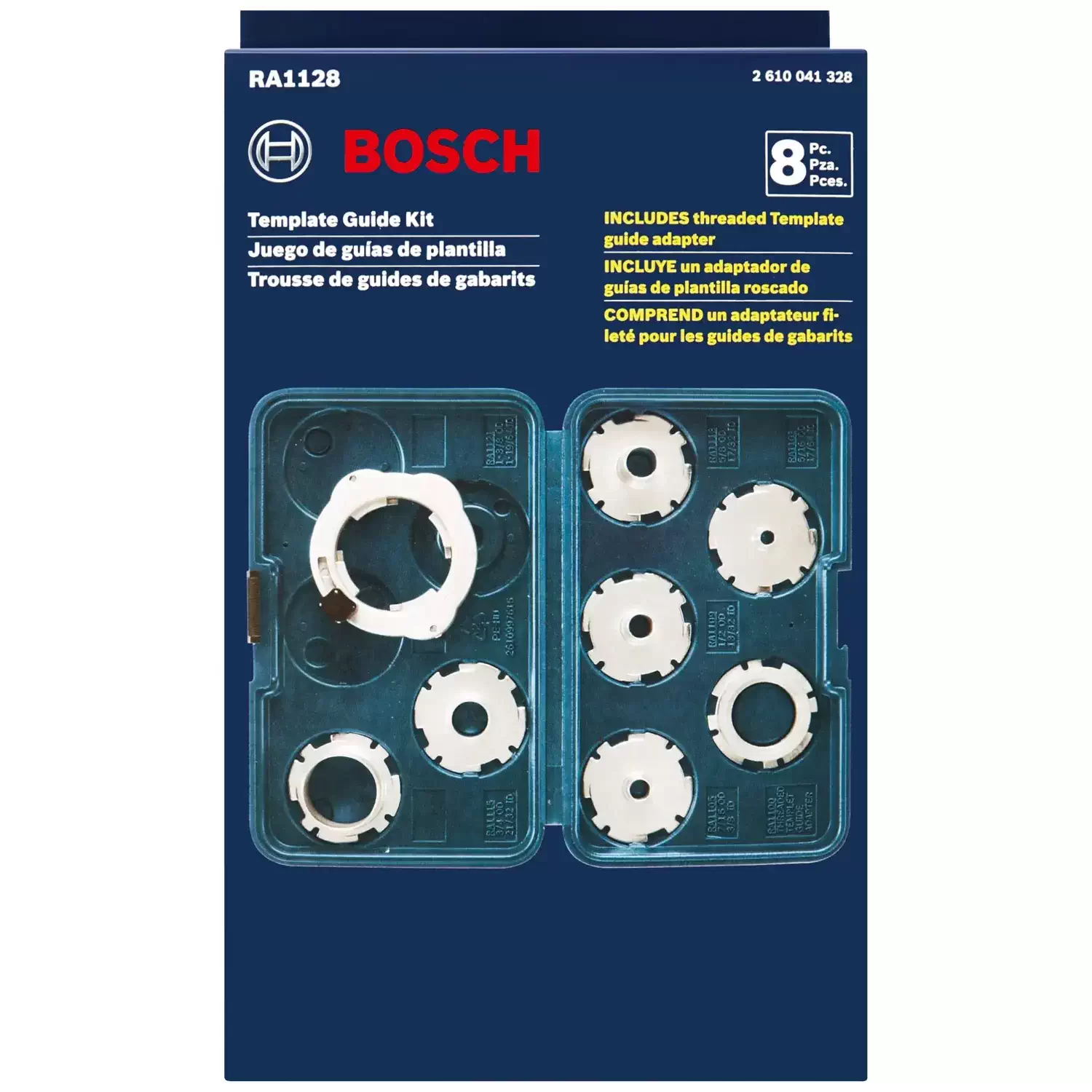

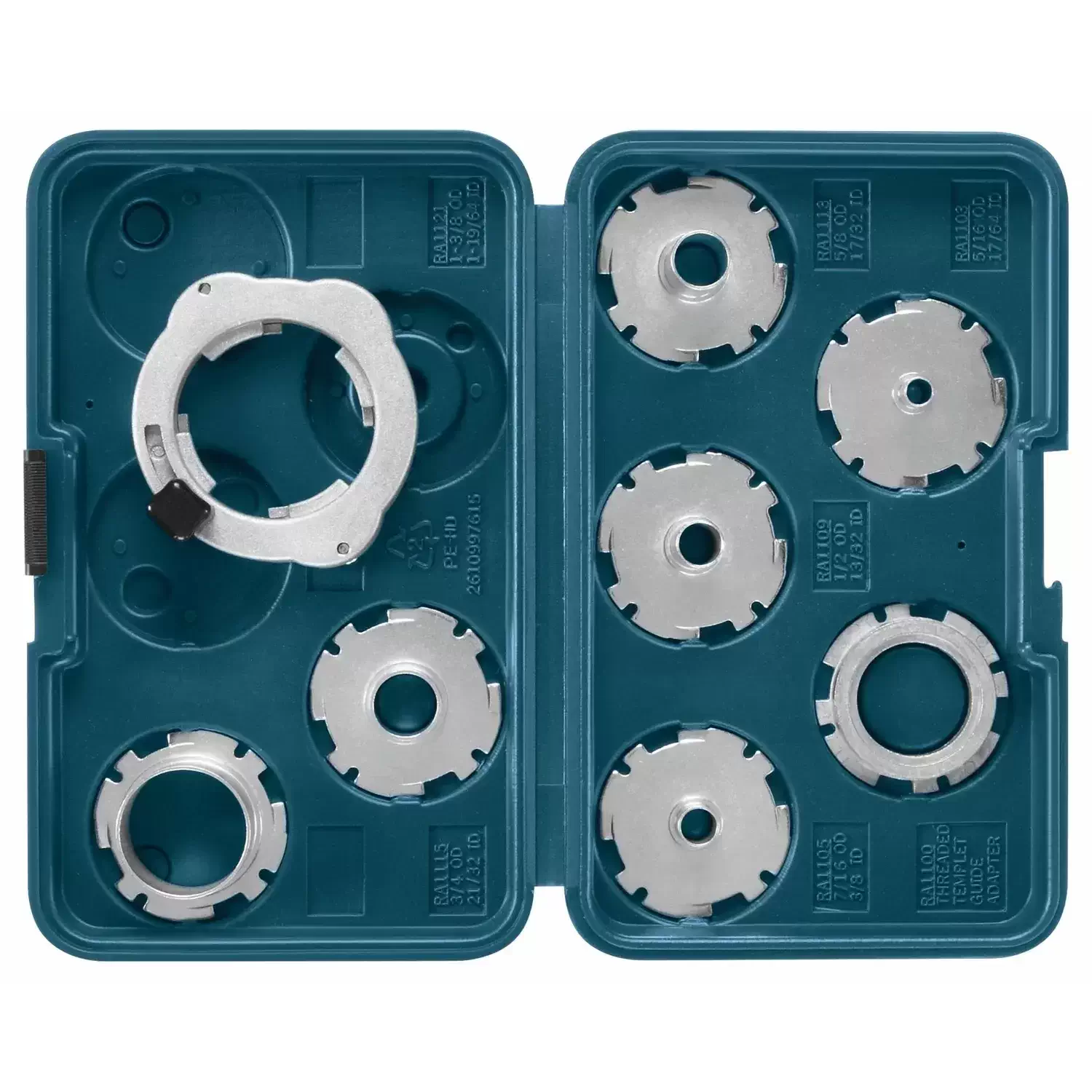

Bosch RA1128 8PC Router Template Guide Set Includes

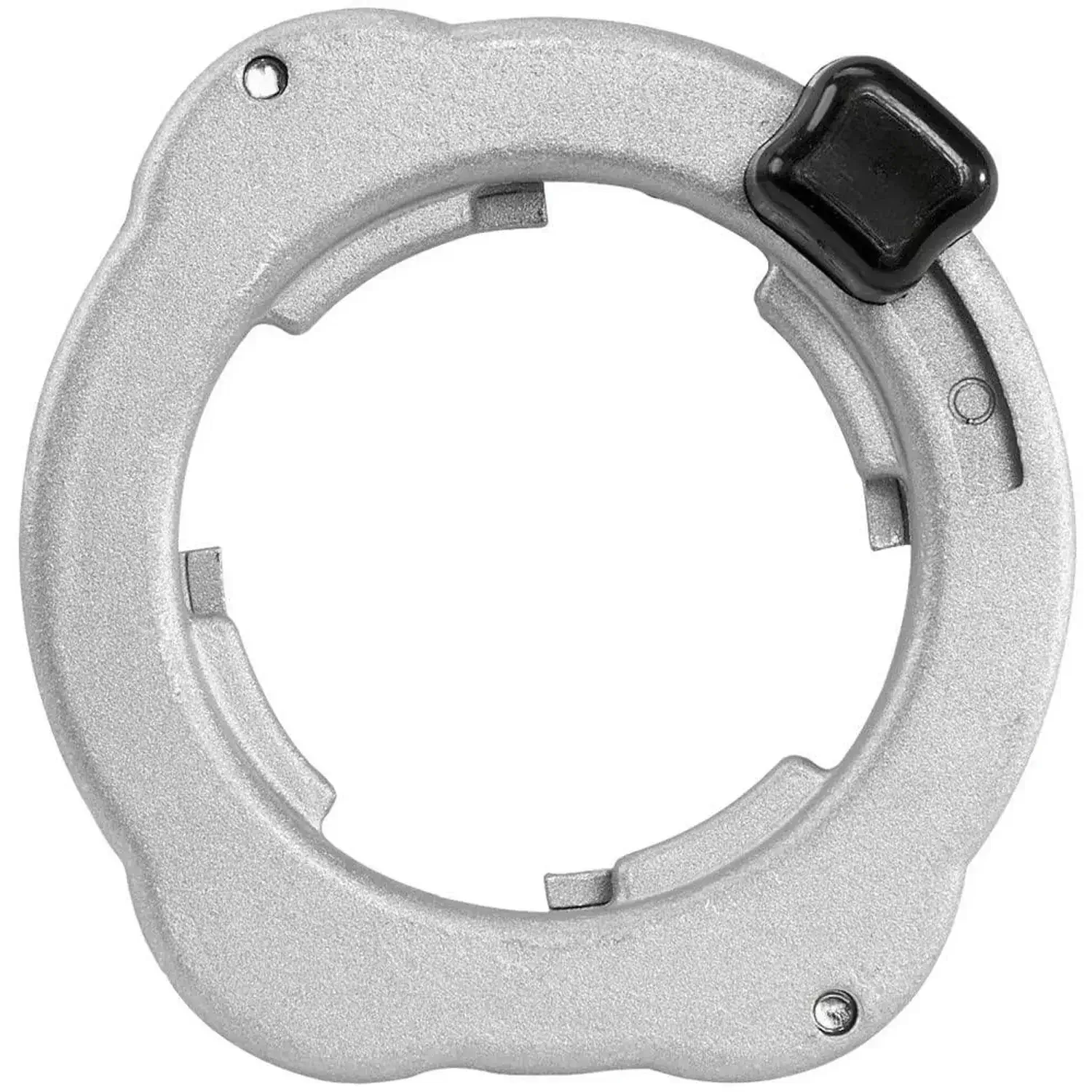

  • (1) Quick-release template guide adapter (RA1126)
  • (1) Template guide for small dovetail joints (9/64 In. x 5/16 In. x 17/64 In.) [protrusion below subbase x outer width of bushing x inner width of bushing] (RA1103)
  • (1) Template guide for large dovetail joints (9/64 In. x 7/16 In. x 3/8 In.) [protrusion below subbase x outer width of bushing x inner width of bushing] (RA1105)
  • (1) Template guide for 1/4-In. radius hinges (1/2 In. x 5/8 In. x 17/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing] (RA1113)
  • (1) Template guide for 5/8-In. radius hinges (7/16 In. x 1-3/8 In. x 1-19/64 In.) [protrusion below subbase x outer width of bushing x inner width of bushing] (RA1121)

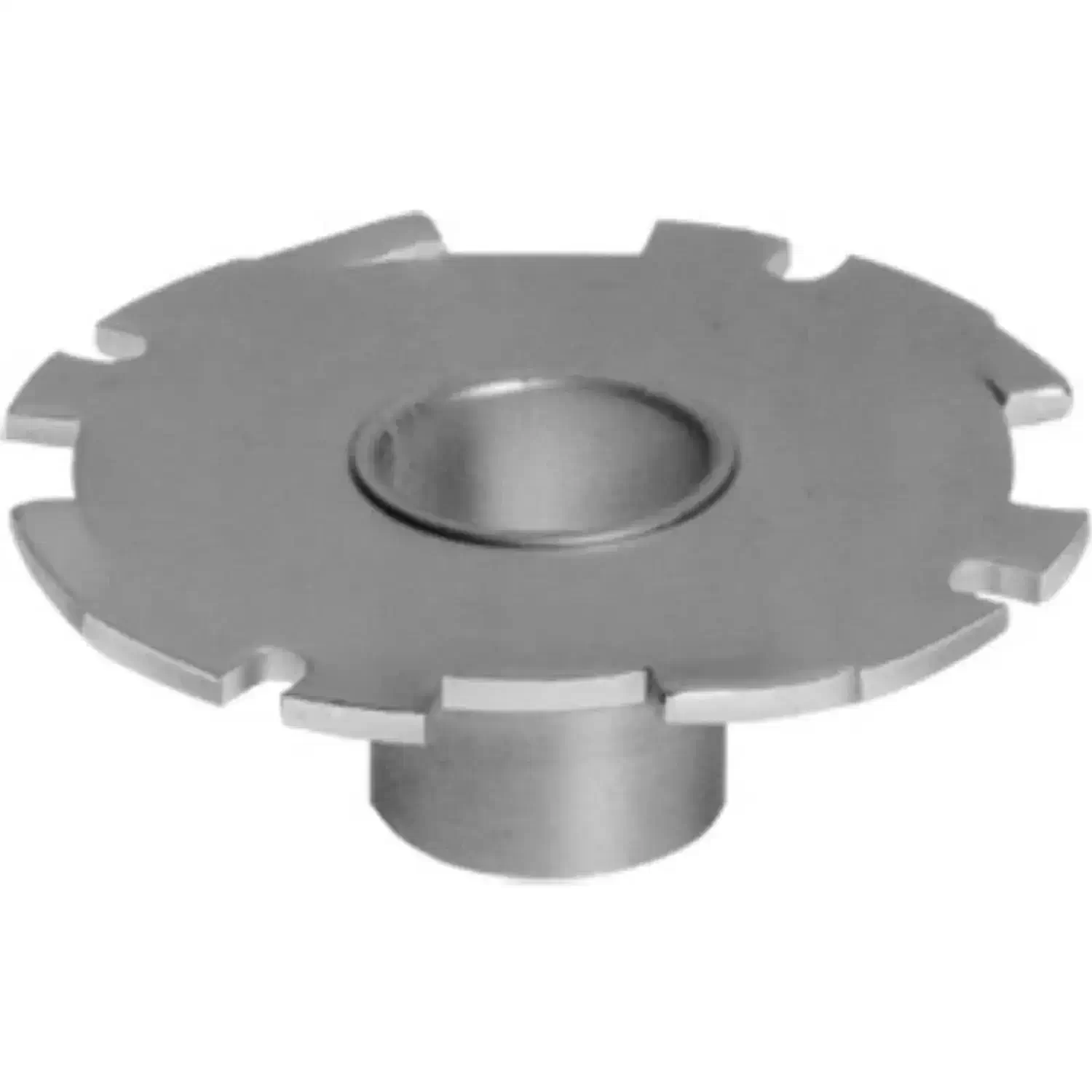

  • (1) Template guide (7/16 In. x 1/2 In. x 13/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing] (RA1109)
  • (1) Template guide (3/16 In. x 3/4 In. x 21/32 In.) [protrusion below subbase x outer width of bushing x inner width of bushing] (RA1115)

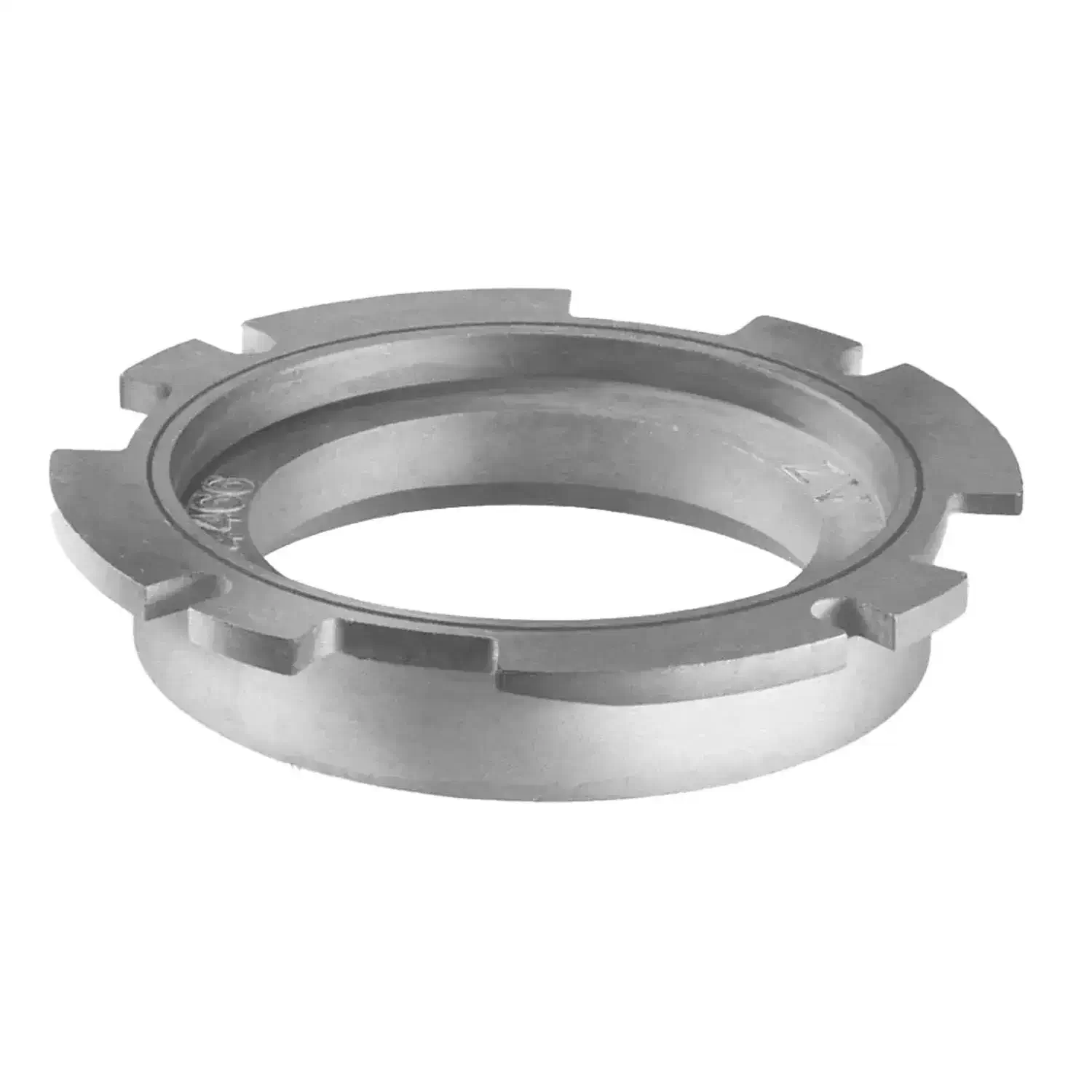

  • (1) Interface for threaded template guides (and reducer inserts) that fit into a common 1-3/8 In. counter-bore, such as those sold by Porter-Cable® and others (RA1100)

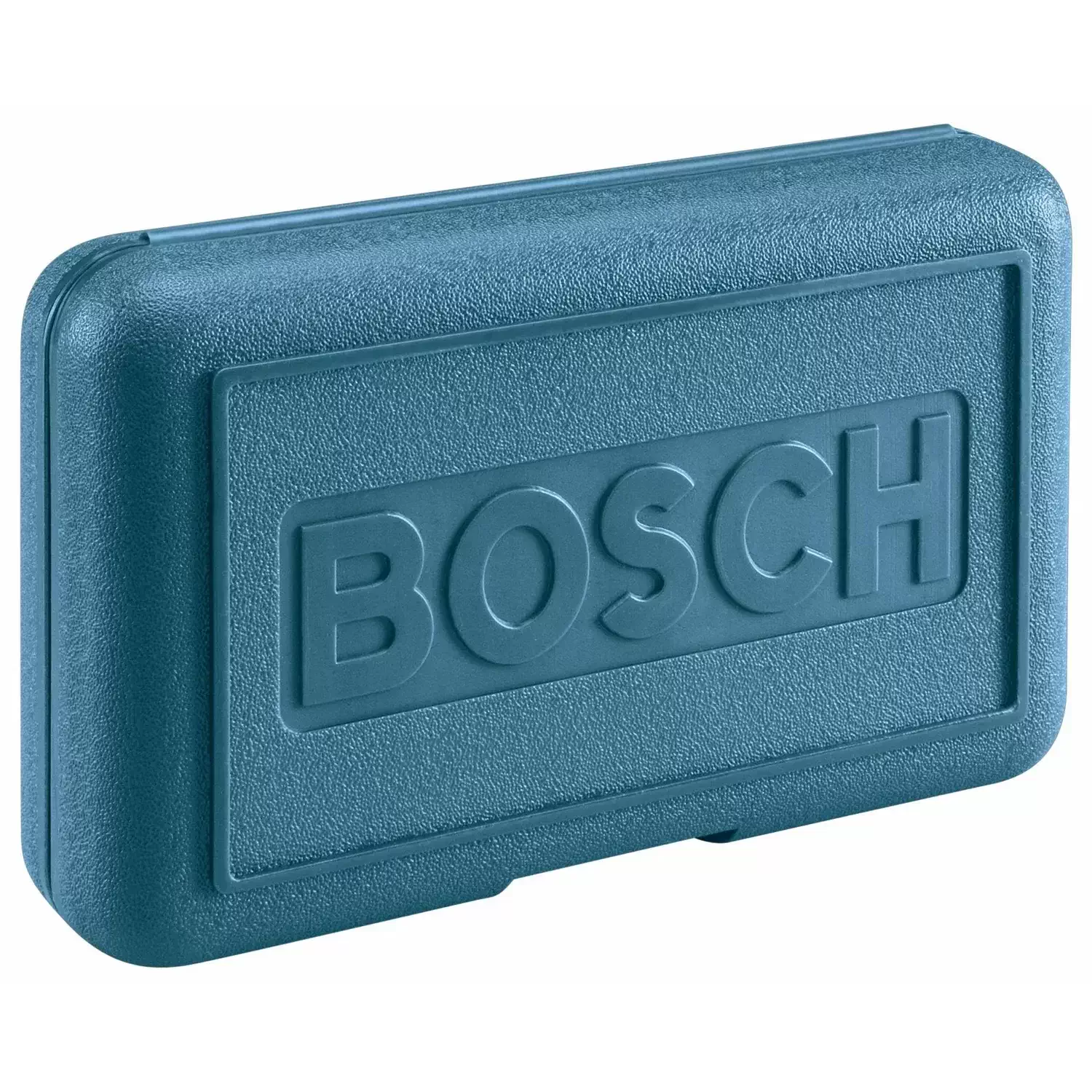

  • (1) Case

Bosch RA1128 8PC Router Template Guide Set Specifications

  • Guide Sizes:
    • Small Dovetail Guide: 9/64 In. x 5/16 In. x 17/64 In.
    • Large Dovetail Guide: 9/64 In. x 7/16 In. x 3/8 In.
    • Radius Hinge Guide 1/4 In.: 1/2 In. x 5/8 In. x 17/32 In.
    • Radius Hinge Guide 5/8 In.: 7/16 In. x 1-3/8 In. x 1-19/64 In.
    • General Template Guides: 7/16 In. x 1/2 In. x 13/32 In.; 3/16 In. x 3/4 In. x 21/32 In.
  • Adapter: RA1126 Quick-Change Adapter for Bosch template guides
  • Interface: RA1100 for 1-3/8 In. counter-bore threaded guides (Porter-Cable® compatible)
  • Material: Metal

Why Customers Like the Bosch 8PC Router Template Guide Set

The Bosch RA1128 Router Template Guide Set is a dependable solution for professionals needing precision and flexibility in their routing work. The quick-change adapter allows smooth transitions between templates, while the set’s compatibility with various Bosch and non-Bosch routers and guides adds extra convenience. Known for accuracy and durability, this set is a trusted choice among woodworkers, cabinet makers, and construction teams alike, helping to deliver consistent, quality results on every project.

Additional information

Weight 0.902 lbs
Dimensions 9.5 × 4.9 × 2 in
