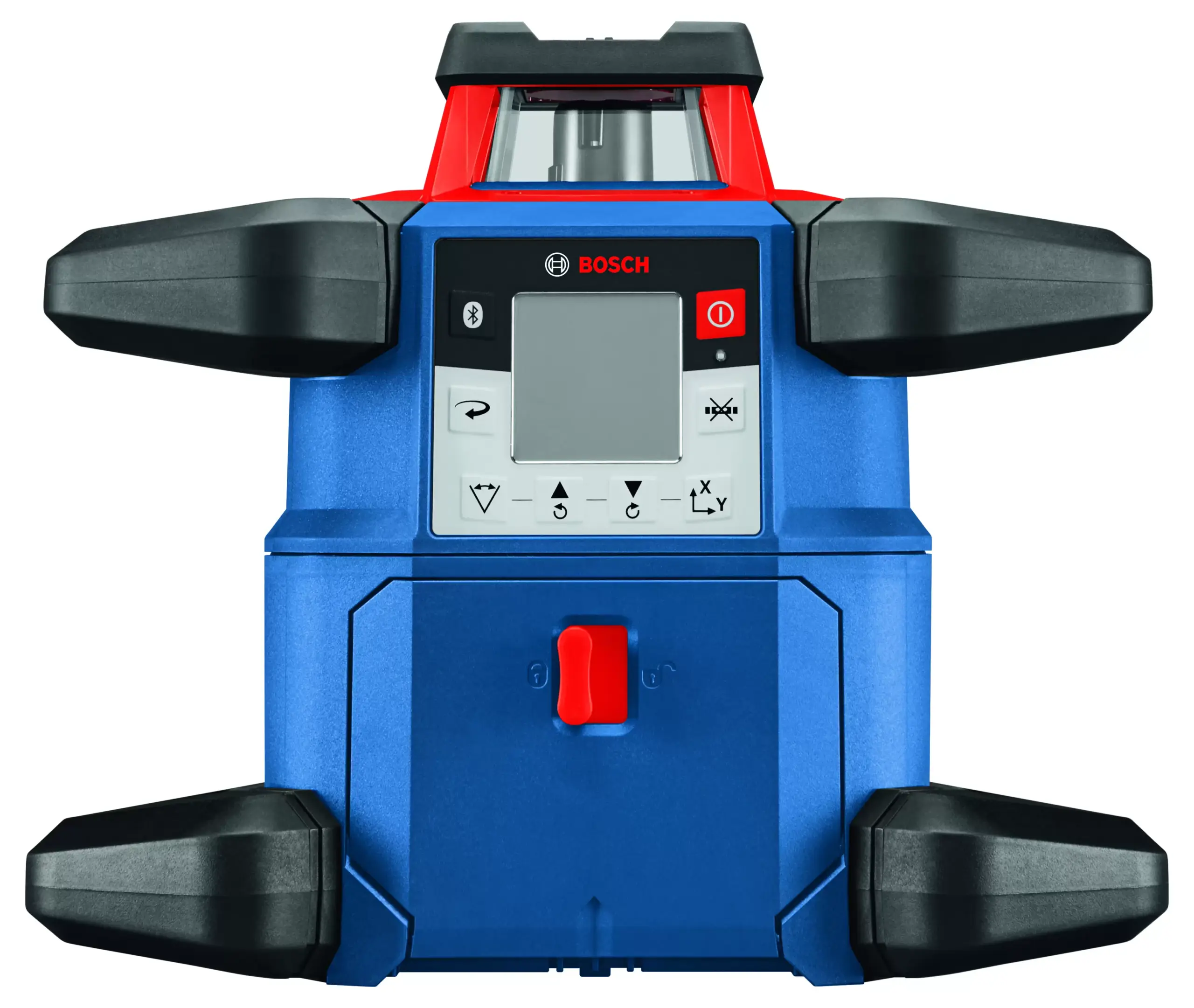

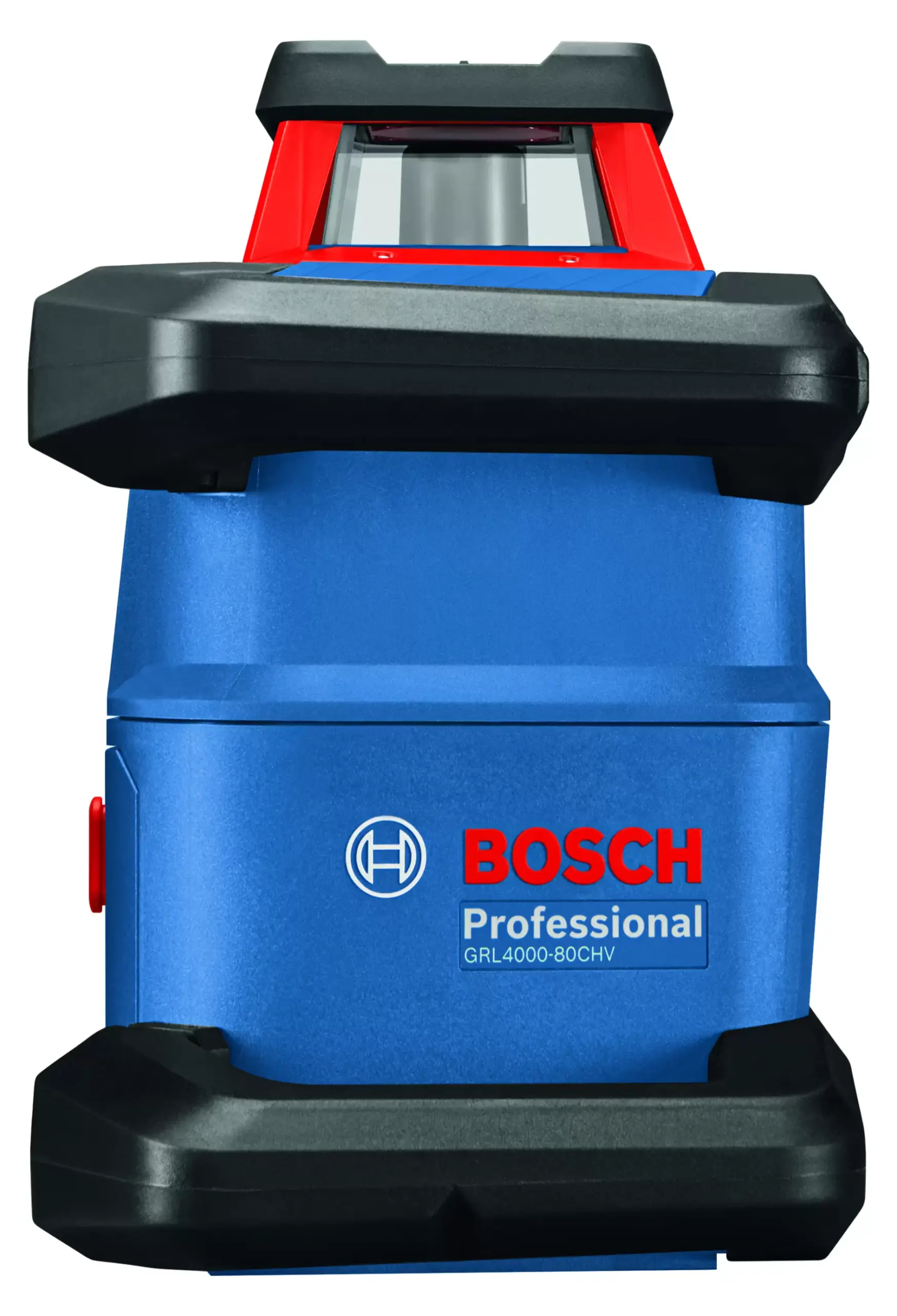

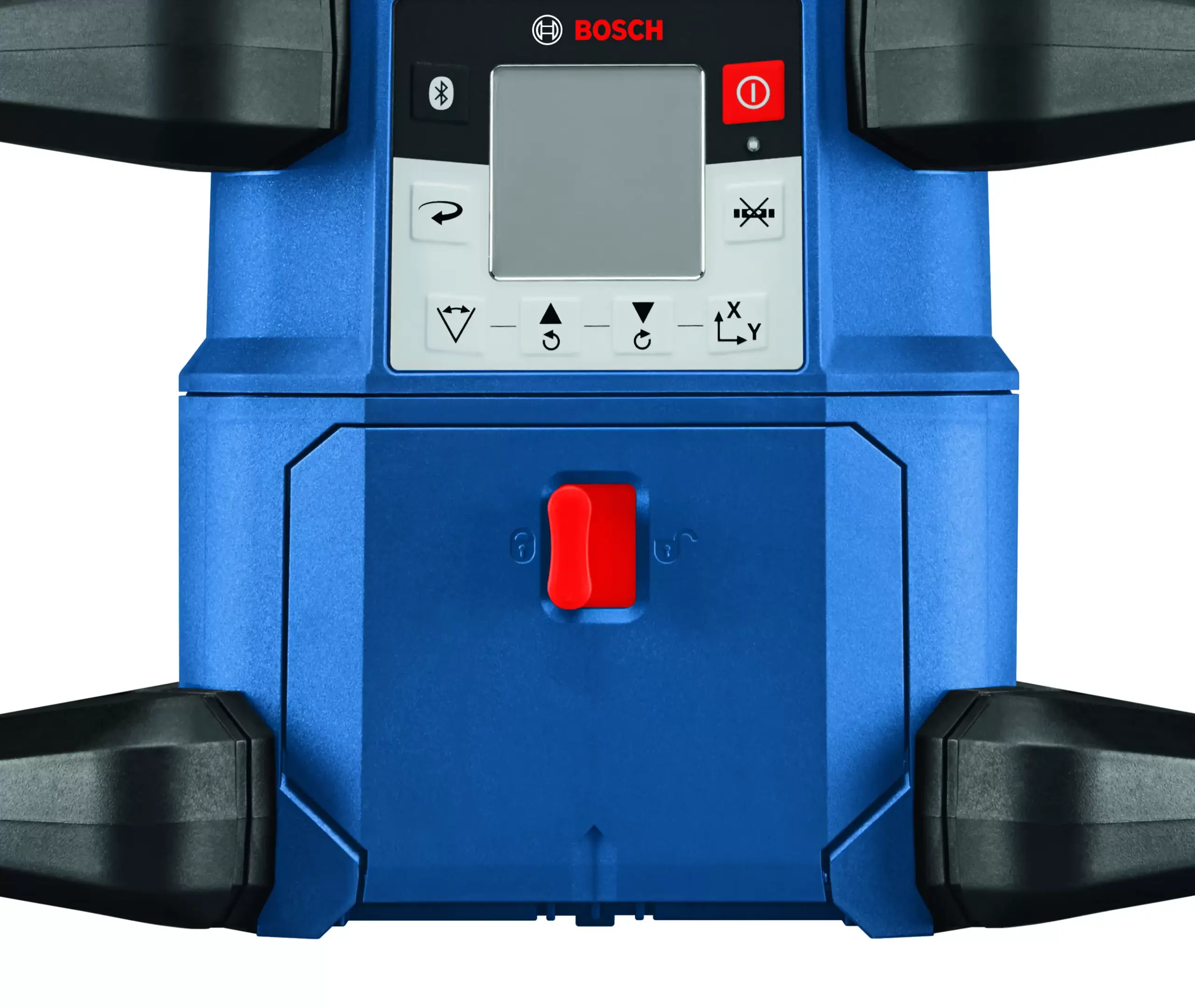

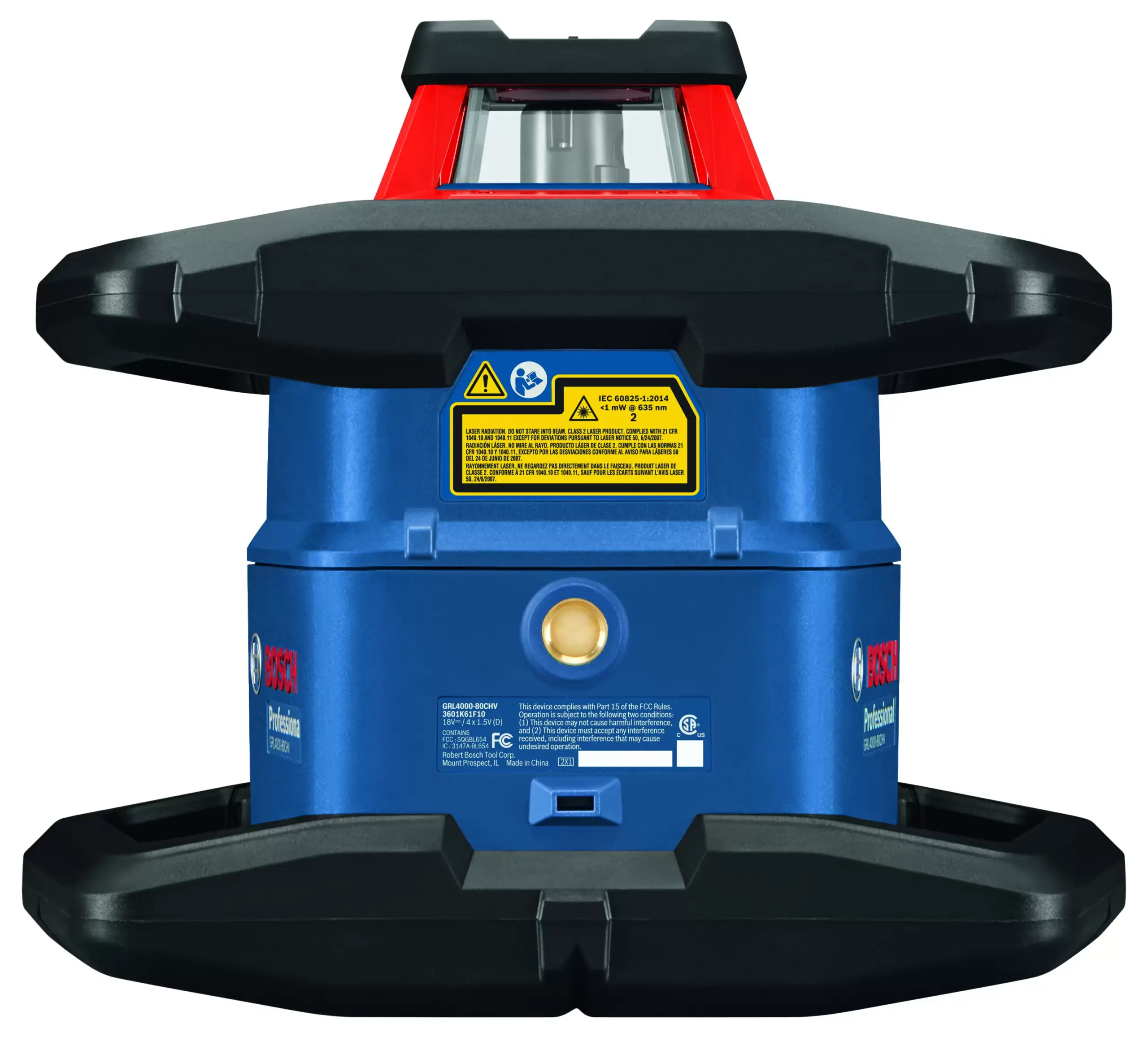

The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. The GRL4000-80CHV is powered by a Bosch CORE18V 4 Ah battery, providing extended runtime. The rotary laser is compatible with 4 Ah and 8 Ah Bosch CORE18V Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth connectivity to a connected device, linking to the Bosch Leveling Remote App. This app controls on/off, Dual Dial-In Slope, and more. The rotary laser features uCAL, for user-calibration, taking the user step by step through the calibration process. This avoids tool down time and provides confidence that the laser is accurate. It delivers accuracy of up to ±1/16″ at 100′ in horizontal applications and ±1/8″ at 100′ in vertical mode, and a range of up to 4,000′ with laser receiver. The laser features a vertical beam at 90° point for layout, squaring and plumb applications.
BOSCH GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V 4 Ah Advanced Power Battery Features
- Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth connectivity, uCAL user-calibration and more

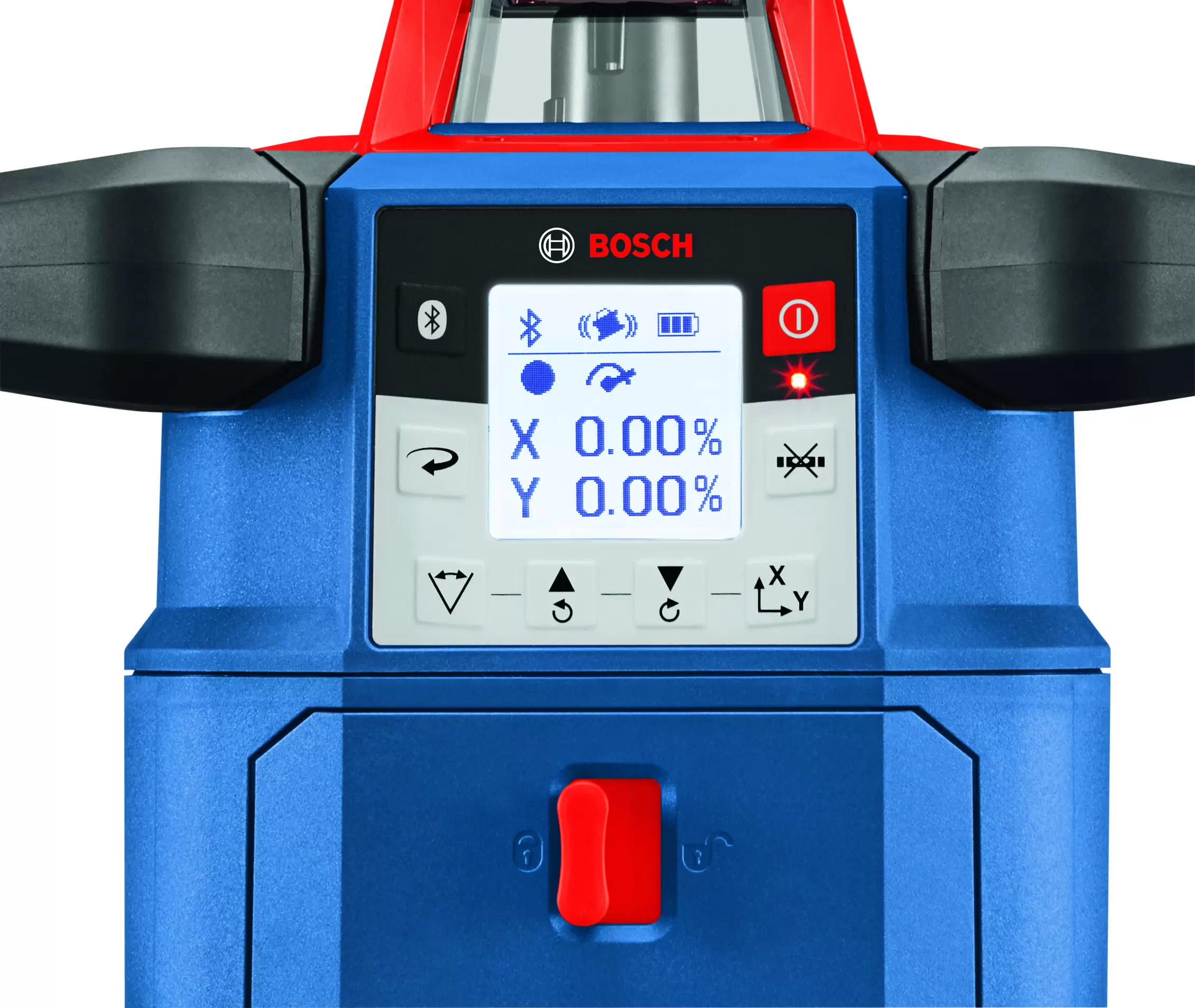

- Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes

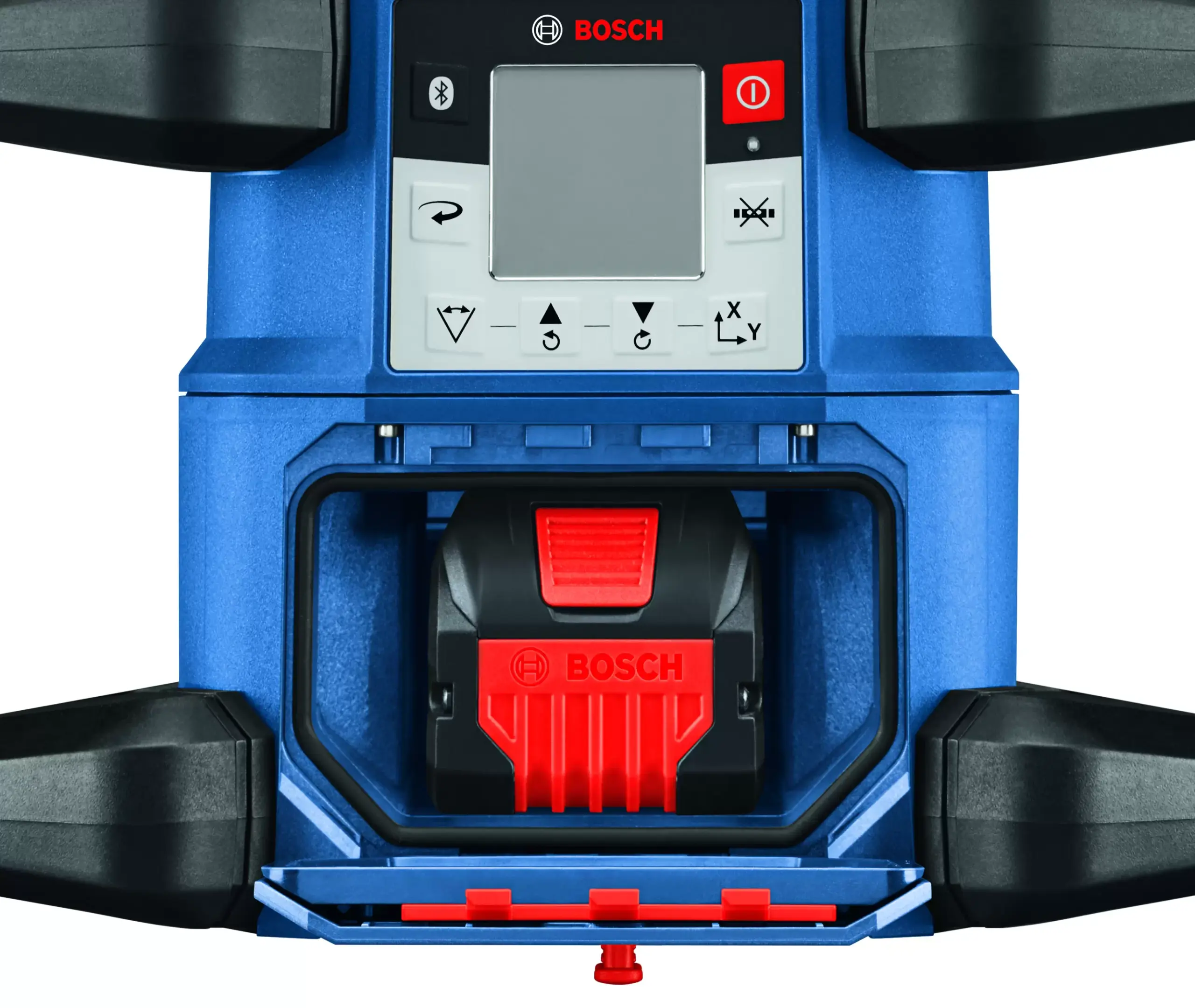

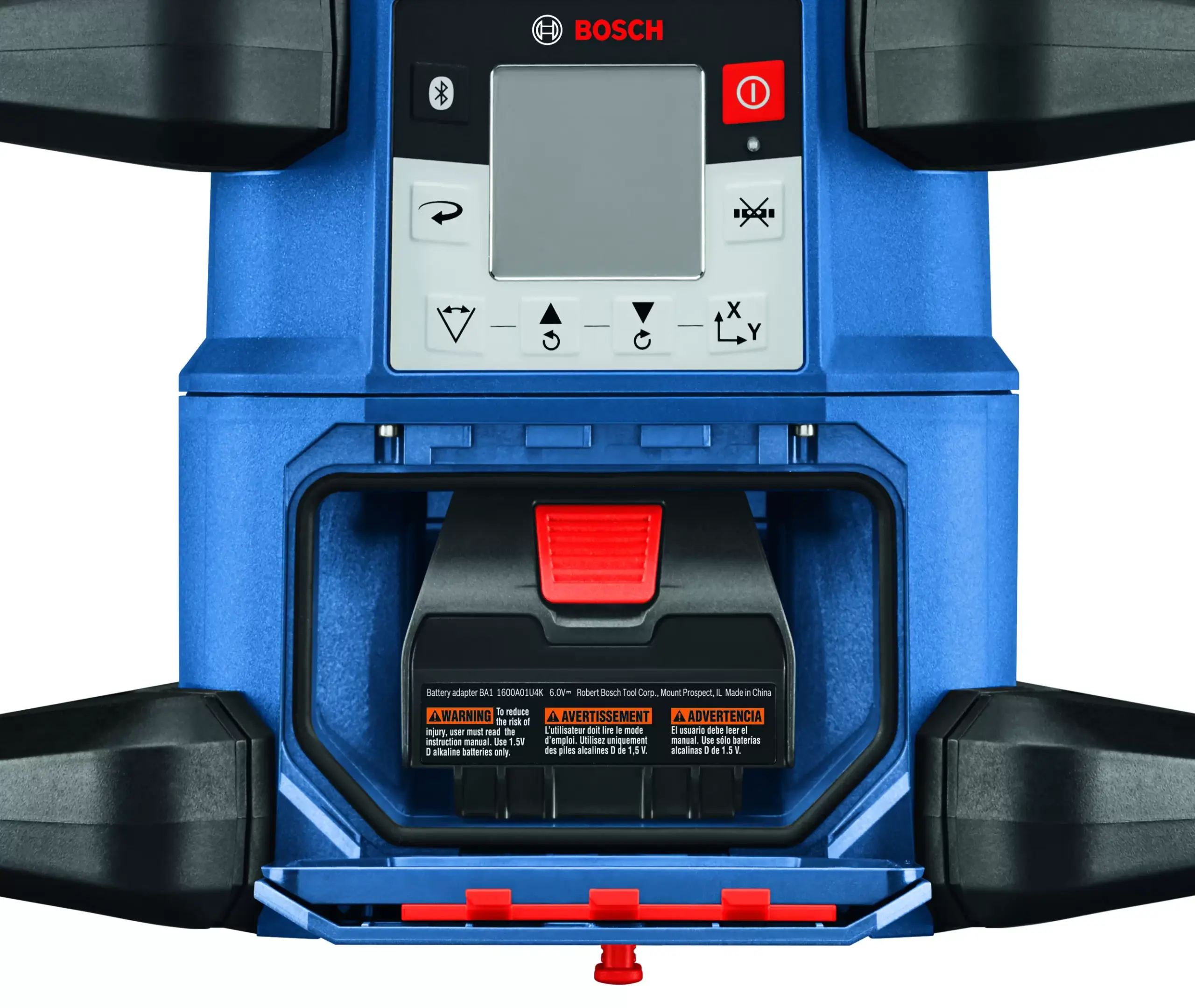

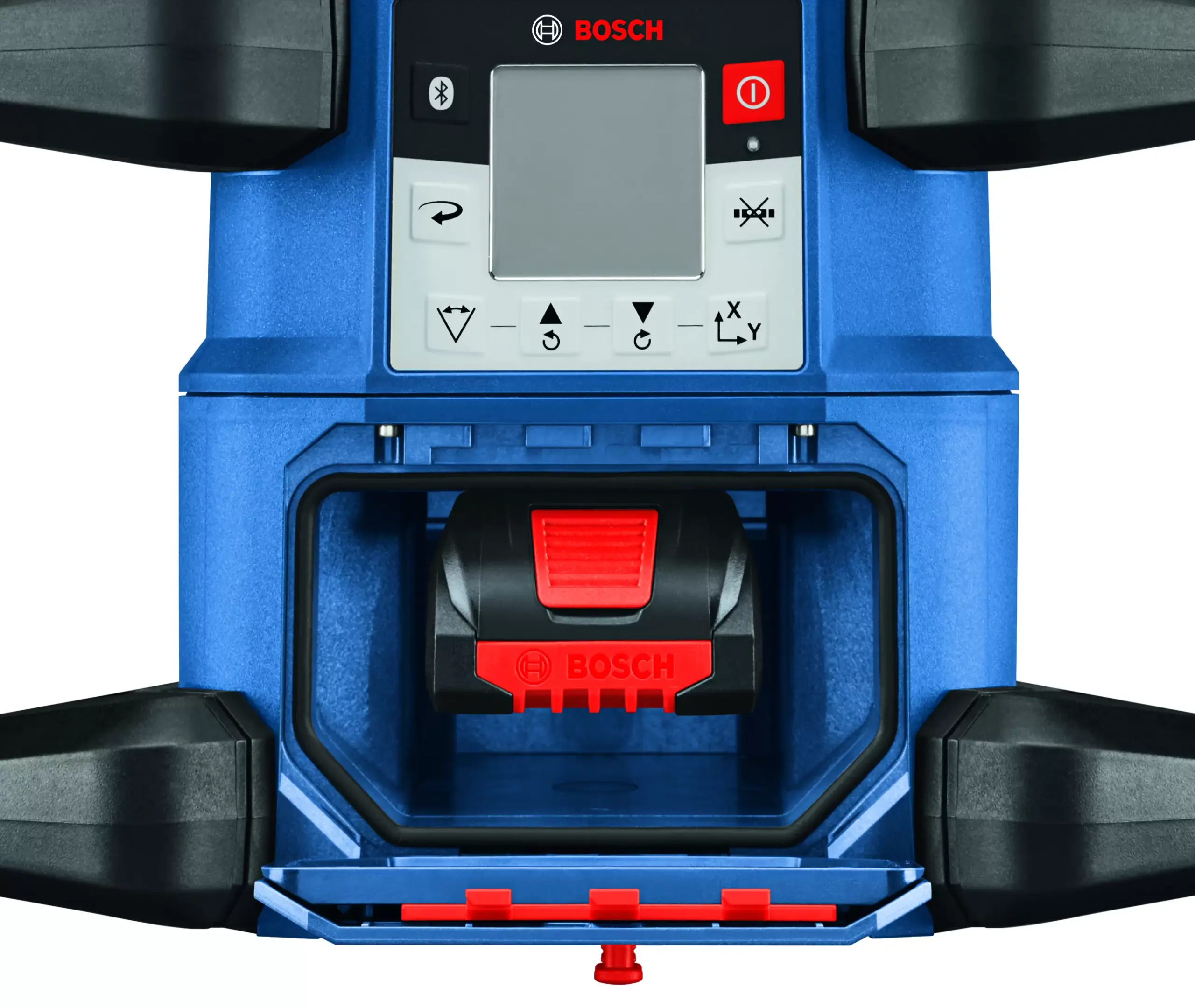

- Dual power source – for extended runtime and option of a 4 Ah CORE18V battery or a battery adapter with four (D) cell batteries

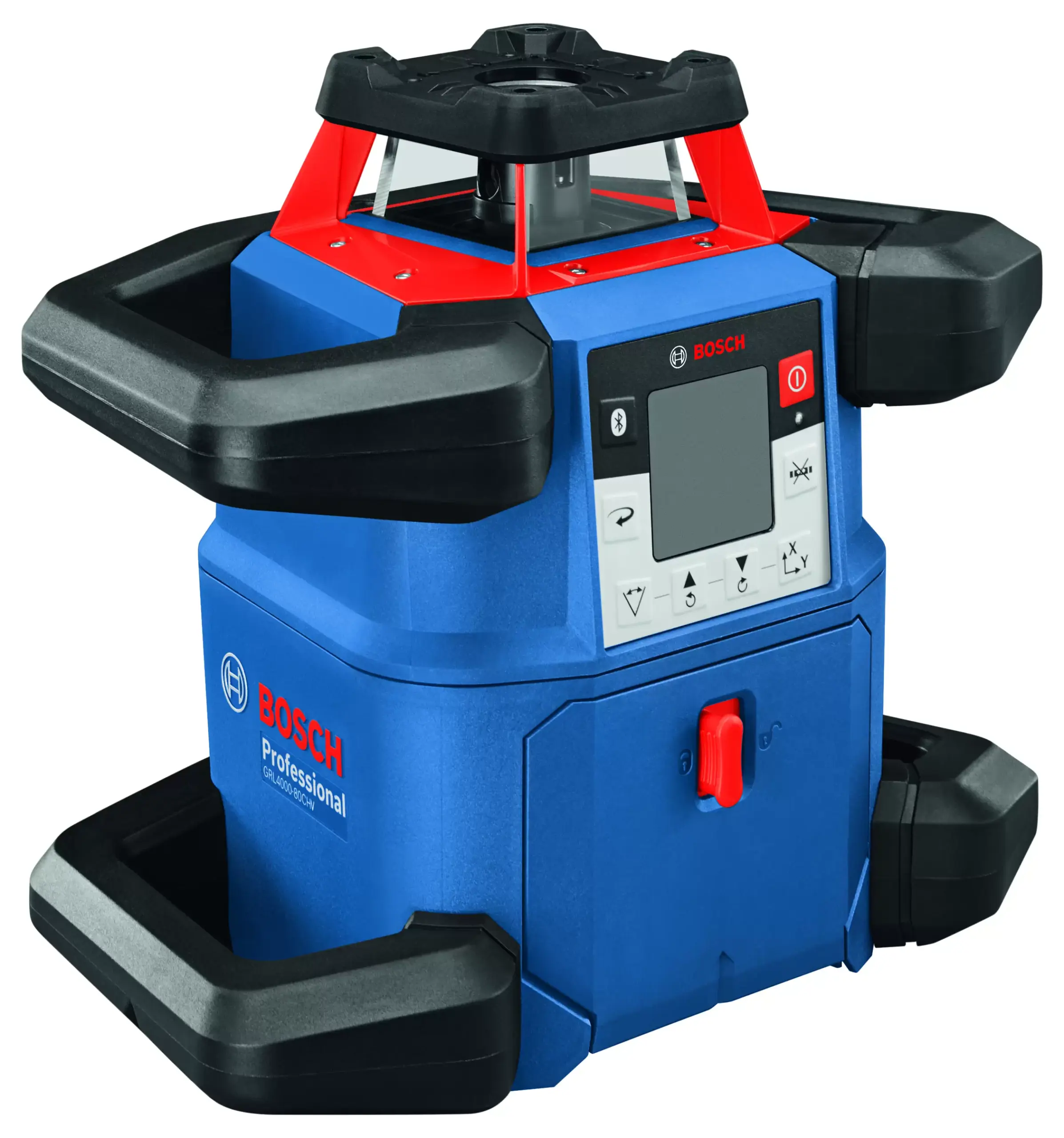

- Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
- Bluetooth connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
- uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
- Long working range – range of up to 4,000′ with laser receiver, the laser accuracy of up to ±1/16″ at 100′ in horizontal mode and ±1/8″ at 100′ in vertical mode

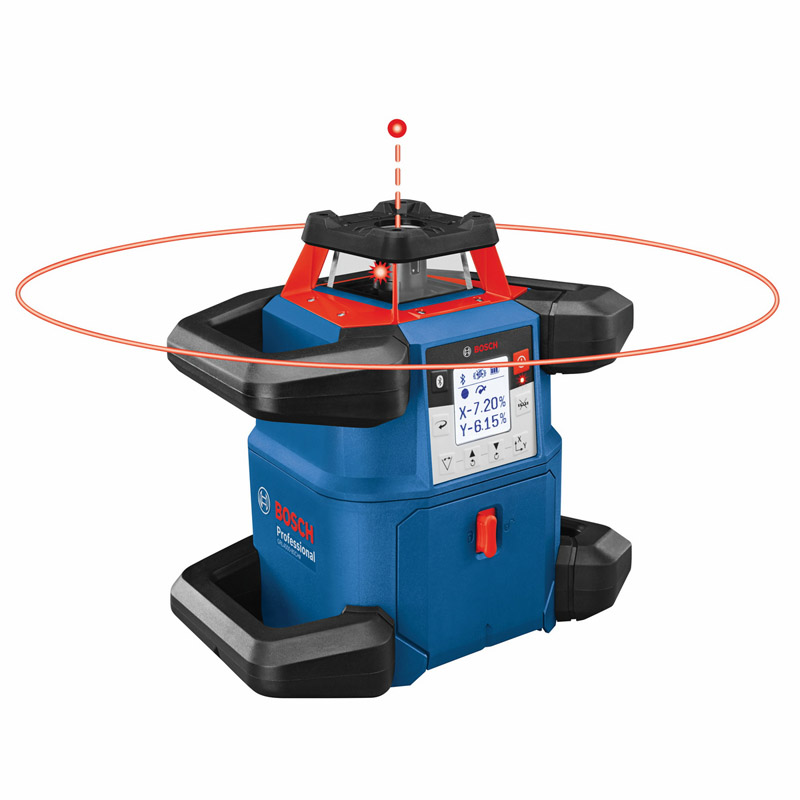

- Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
- Electronic self-leveling – allows for easy setup and use on the job
- Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
- Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
- AMPShare System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
- AMPShare System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare brands
BOSCH GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V 4 Ah Advanced Power Battery Specifications
- Accurate to Within __ in per 100 ft-
- Accurate to Within __ in per 100 ft- 0.0625
- Automatic Operation- Yes
- Indoor / Outdoor- Indoor/Outdoor
- Laser Level Mounting Method- Tripod
- Width in- 14″
- LED Display- Yes
- Legs Included- No
- Maximum Distance (ft)- 4000
- Projects Beam 360 degrees- Yes
BOSCH GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser with (1) CORE18V 4 Ah Advanced Power Battery Includes

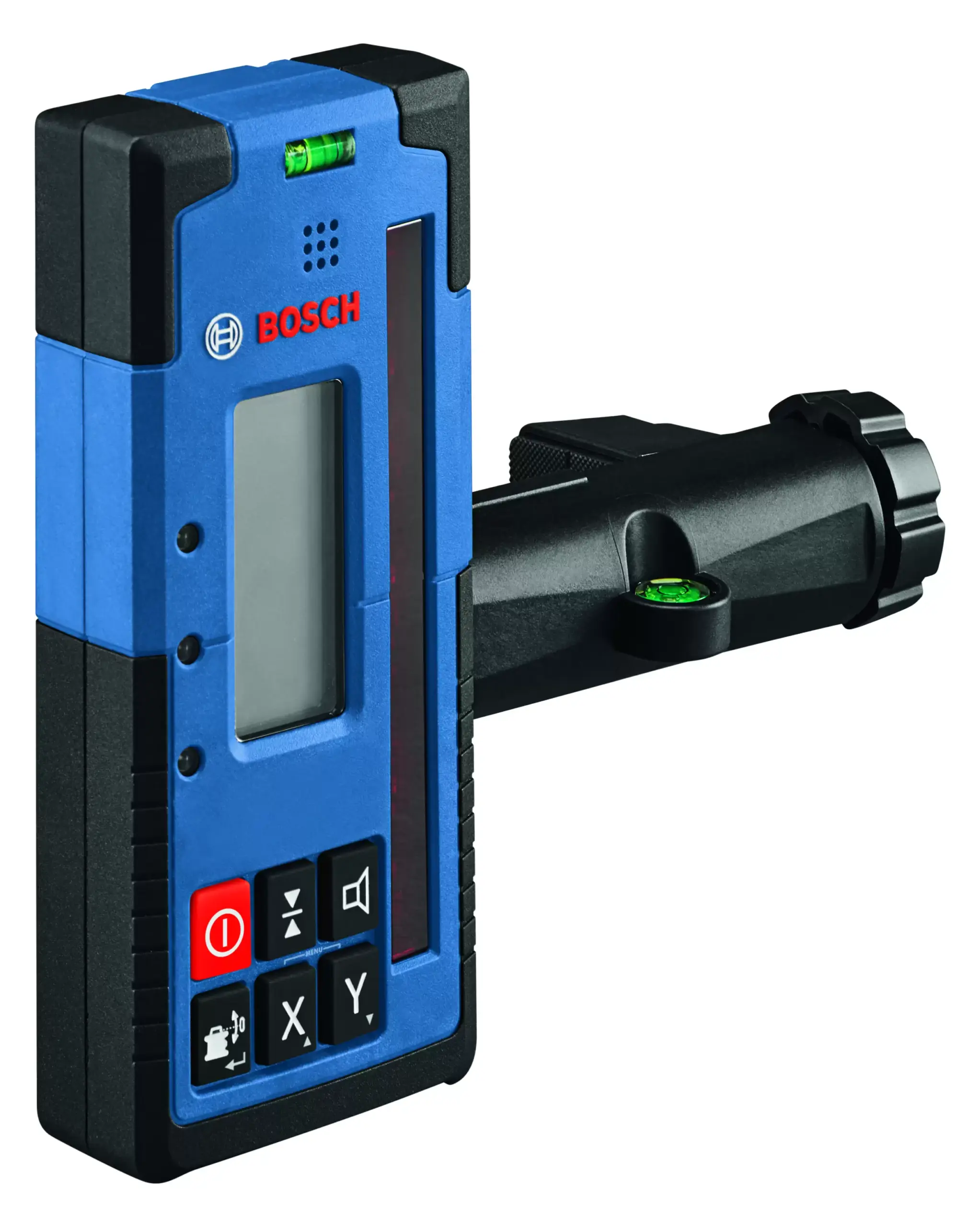

- (1) GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser, (1) LR40 Laser Receiver with Bracket, (1) GBA18V40 18V CORE18V Lithium-Ion 4 Ah Advanced Power Battery, (1) 18V Charger, (1) BA1 Alkaline Battery Adapter, (4) D Batteries, (4) AA Batteries, (1) WM6 Wall Mount, (1) RC5 Remote Control, (1) Carrying Case
