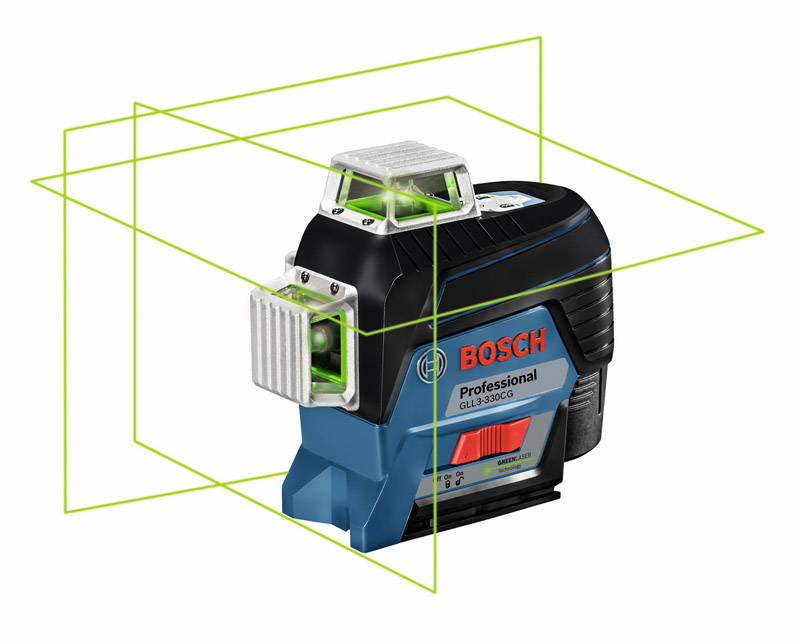

Bosch GLL3-330CG 12V 360⁰ 3-Plane Green Beam Line Laser

The Bosch GLL3-330CG 12V Max 360° Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser offers a powerful solution for precision alignment and leveling tasks. Designed for professional-grade applications, this tool generates three 360° green-beam laser planes—one horizontal and two vertical—delivering exceptional visibility and accuracy. The green-beam technology is up to four times brighter than standard red lasers, making it ideal for both indoor and outdoor projects with a range of up to 200 ft in diameter. This laser is Bluetooth® enabled, allowing you to control it remotely through the Bosch Leveling Remote App, providing convenience and efficiency on the job. Whether powered by Bosch’s 12V Max Lithium-Ion battery or standard AA batteries, the laser offers flexibility and extended runtime. With its IP54 rating for protection against dust and water, it is rugged enough to withstand demanding jobsite conditions.

Bosch 12V 360⁰ Green Beam Line Laser At a Glance

• Ultimate all-in-one leveling and alignment tool: Ideal for one-person setups, with Bluetooth® control and dual power technology.
• Bright green-beam laser: Up to 4X brighter than red lasers, providing enhanced visibility up to 200 ft.
• VisiMax™ technology: Monitors power consumption to maximize line visibility and battery life.
• Bluetooth® connectivity: Control laser functions remotely with the Bosch Leveling Remote App.
• Dual power technology: Compatible with both Bosch 12V Max Lithium-Ion battery and AA alkaline batteries.
• CAL Guard monitoring: Alerts for drops, high temperatures, or expired calibration intervals.
• Extended working range: Up to 330 ft in diameter with the optional LR8 receiver.

Markets

• Construction: Ideal for layout tasks, aligning walls, and installing ceilings or framing.
• Carpentry: Precision alignment for cabinetry installation, shelving, and woodwork assembly.
• HVAC installation: Ensures accurate alignment when installing ducts and vent systems.
• Plumbing: Helps align pipes and fixtures in new builds or remodels.
• Electricians: Useful for conduit and lighting alignment in both residential and commercial projects.
• Surveying: Offers extended range and accuracy for large site measurements.
• Municipal projects: Great for city planners and crews needing precise leveling for sidewalks, roads, or outdoor structures.

This laser is perfect for professionals in construction, carpentry, and alignment-intensive fields. It simplifies single-person setups, reducing time and labor costs. The VisiMax™ technology ensures maximum visibility and optimal power usage, while the CAL Guard function offers peace of mind by alerting you if the tool needs recalibration due to shocks, high temperatures, or calibration expiration. For large-scale projects, the pulse mode paired with the optional LR8 receiver extends the range up to 330 ft, making it suitable for vast, open areas where visibility is crucial.

Bosch GLL3-330CG Professional 12V 360⁰ 3-Plane Green Beam Line Laser Features

• Ultimate all-in-one leveling and alignment laser – facilitates one-person job setup with connected capability, dual-power technology and long working range
• Bright green-beam laser – up to 4X brighter than standard red beams, the leveling laser has a working range of up to 200 Ft. diameter
• Built-in VisiMax™ technology – monitors power consumption to maximize line visibility and extend battery life
• Bluetooth® connectivity – controls the operation of the laser from across the room with their smart phone and the free Bosch Leveling Remote App
• Bosch Leveling Remote App – free to download and free to use, this app turns the leveling laser and receiver mode on and off, select the laser planes, adjust line visibility and provide battery and level alerts
• Dual power technology – utilizes the included Bosch 12 V Max Lithium-ion battery or four AA alkaline batteries
• CAL Guard warns if one of the following cases occurred: 1) Shock events such as drops 2) High temperatures 3) 12-month calibration interval has expired.
• Working range up to 330 Ft. diameter with optional receiver.
• Works with mounts and tripods using a 1/4"-20 or 5/8"-11 thread mount.
• IP 54 – Protected against dust and splashing water from any direction.
• Power flexibility – works with Bosch’s 12V Lithium-Ion 2.0 Ah battery or four AA batteries.

Bosch GLL3-330CG Professional 12V 360⁰ 3-Plane Green Beam Line Laser Works With

• Laser Receivers:  LR8
• Tripods: BT160, BT170HD, BT300HD, BT 150
• Telescoping Pole System: BP350
• Telescoping Leveling Rods: GR 16, GR500
• Mounts and Positioning Devices: WM 4, BM 1, BM3, LB10, RM 2
• Batteries: BAT414, GBA12V30
• Chargers: GAL12V-20, GAL12V-40, GAX1218V30

Bosch GLL3-330CG Professional 12V 360⁰ 3-Plane Green Beam Line Laser Includes

• (1) GLL3-330CG 12V Max 360⁰ Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser
• (1) 12V Max Lithium-Ion 2.0 Ah Battery
• (1) 12V Max Lithium-Ion Battery Charger
• (1) BM 1 Positioning Device
• (1) Laser Target
• (1) AA1 Alkaline Battery Adapter
• (1) Heavy-Duty Pouch
• (1) Hard Carrying Case

Bosch GLL3-330CG Professional 12V 360⁰ 3-Plane Green Beam Line Laser Specifications

• Connected: Yes
• Laser Beam Color: Green
• Laser Diode: <10 mW @ 500-540 nm, Class 2
• Leveling Type: Self-Leveling, up to 4°
• Range: 200 ft diameter (330 ft with receiver)
• IP Rating: IP54 (dust and splash-resistant)
• Power Source: 12V Max Lithium-Ion or AA batteries
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Dimensions: 6.4 in (L) x 3.3 in (W) x 5.8 in (H)
• Weight: 2 lb
• Mount Threading: 1/4-20, 5/8-11

Bosch GLL3-330CG Professional 12V 360⁰ 3-Plane Green Beam Line Laser Warranty

• Bosch’s 1-Year Limited Warranty with an additional year if you registered your tool within eight weeks of purchase

Why Professionals Choose the Bosch 12V 360⁰ 3-Plane Green Beam Line Laser

The Bosch GLL3-330CG is trusted for its efficiency and accuracy, especially in one-person setups where precision is key. Its bright green beam ensures visibility in a variety of lighting conditions, and its Bluetooth® connectivity simplifies adjustments without needing to stop work. For professionals in construction, carpentry, and surveying, this laser’s durability and versatile power options make it a go-to for tackling jobs in challenging environments. The extended range and rugged design make it a reliable tool for large outdoor projects, and its calibration features ensure consistent performance across all job types.
