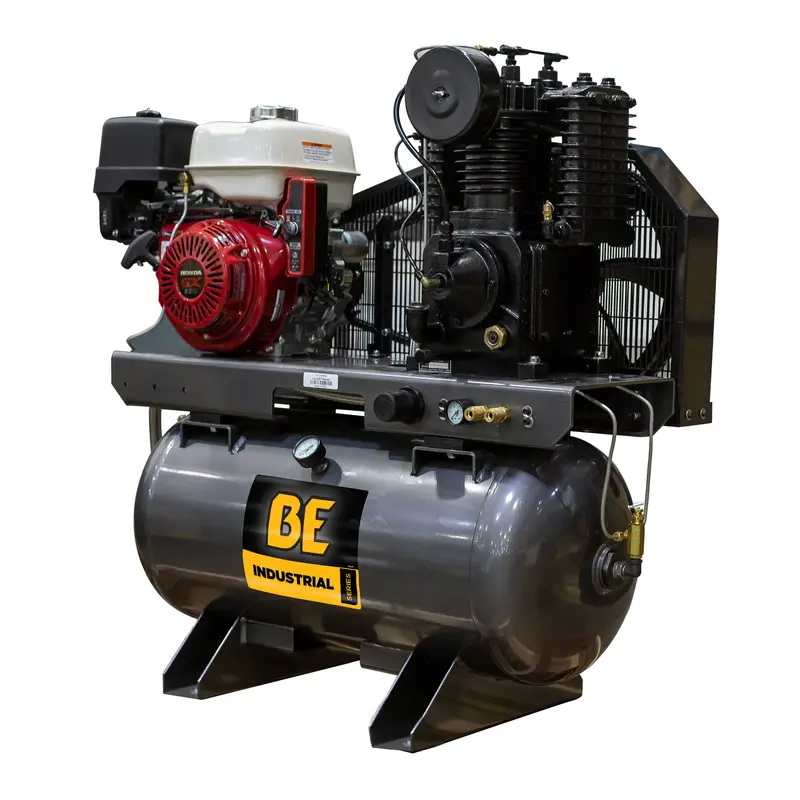

The BE Power Equipment AC1330HEB2 23 CFM Gas Air Compressor is the perfect option for truck or trailer mounted portable air delivery system. The BE AC1330HEB2 features a commercial grade Honda engine with excellent weight to power ratio that is designed to be used all day, everyday. Installed with a an electric start system (battery not included) the BE AC1330HEB2 is easy to start even in cold weather. With performance and lifespan in mind the AC1330HEB2 belt drive system keeps the pump RPM low and running cooler combined with a heavy-duty, two-stage splash lubricated pump with cast iron cylinders, accessible valves, and bearings on both end of the crank makes this unit a beast. The centrifugal and head unloading features further improves pump pumps cooling and life span. The AC1330HEB2 pilot unloader valve is an USA Conrader set to cut in at 140 PSI and cut out at 175 PSI. The 30-gallon truck mount tank with oversized brackets for stability. The removable saddle so the user is able to separate the engine/pump from the tank for specialized set ups.
BE Power Equipment AC1330HEB2 23 CFM Gas Air Compressor Features
- Commercial grade Honda engine with excellent weight to power ratio that is designed to be used all day, everyday.
- Electric start system (battery not included).
- Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span.
- Heavy-duty, two-stage splash lubricated pump with cast iron cylinders, accessible valves, and bearings on both end of the crank
- Centrifugal and head unloading features further improves pump pumps cooling and life span.
- Pilot unloader valve is an USA Conrader set to cut in at 140 PSI and cut out at 175 PSI.
- 30-gallon truck mount tank with oversized brackets for stability.
- Removable saddle so the user is able to separate the engine/pump from the tank for specialized set ups.
- The actual product may vary from the images shown on the website.
BE Power Equipment AC1330HEB2 23 CFM Gas Air Compressor Specifications
- Engine Manufacturer: Honda
- Engine Model: GX390
- Engine Type: AIR COOLED, 4-STROKE OHV
- Displacement: 389CC
- Fuel Type: 86 OCTANE, UP TO 10% ETHANOL
- Oil Type: SAE 10W30
- Tank Size: 30 Gallons
- Material: Powder Coated Steel
- Tank Drain: Twist Valve
- Brackets: 3.5″ X 19″ SOLID STEEL
- Pump Type: RECIPROCATING
- Pump Part Number: 42.005.018
- MAX PSI: 175
- Stage: Two
- Oil Type: 30W NON-DETERGENT
- Duty Cycle: 80%
- RPM: 975
- Air Filter: 1″ NPT PORT SIZE
- Air Filter Part Number: 42.005.052
- Shipping Weight: 485LBS
- Shipping Dimensions (LxWxH): 50″x32″x48″
- Product Weight: 440LBS
- Product Dimensions (LxWxH): 42″x49″x21″
