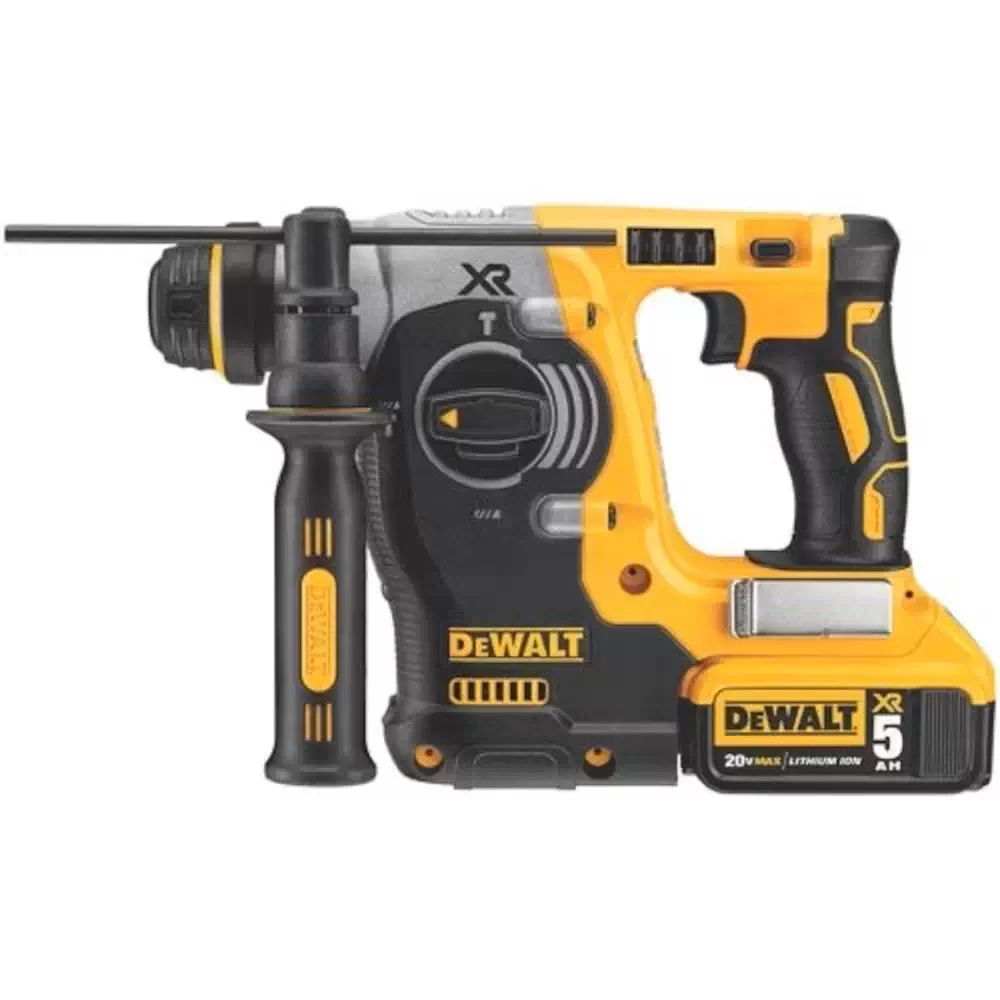

Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit (5.0AH)

The Dewalt DCH273P2 20V MAX XR Brushless 1 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 2.1 Joules of impact energy. The lightweight design makes this tool ideal for rod hanging, seismic & safety attachments, cable tray & strut mounting, clamp mounting, and rail mounting. It is part of the PERFORM and PROTECT product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL System and becomes OSHA Table 1 Compliant when used with the DWH303DH On Board Extractor. The Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit includes 2ea 20V MAX* DCB205 5ah Batteries and Charger.

Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit (5.0AH) Features

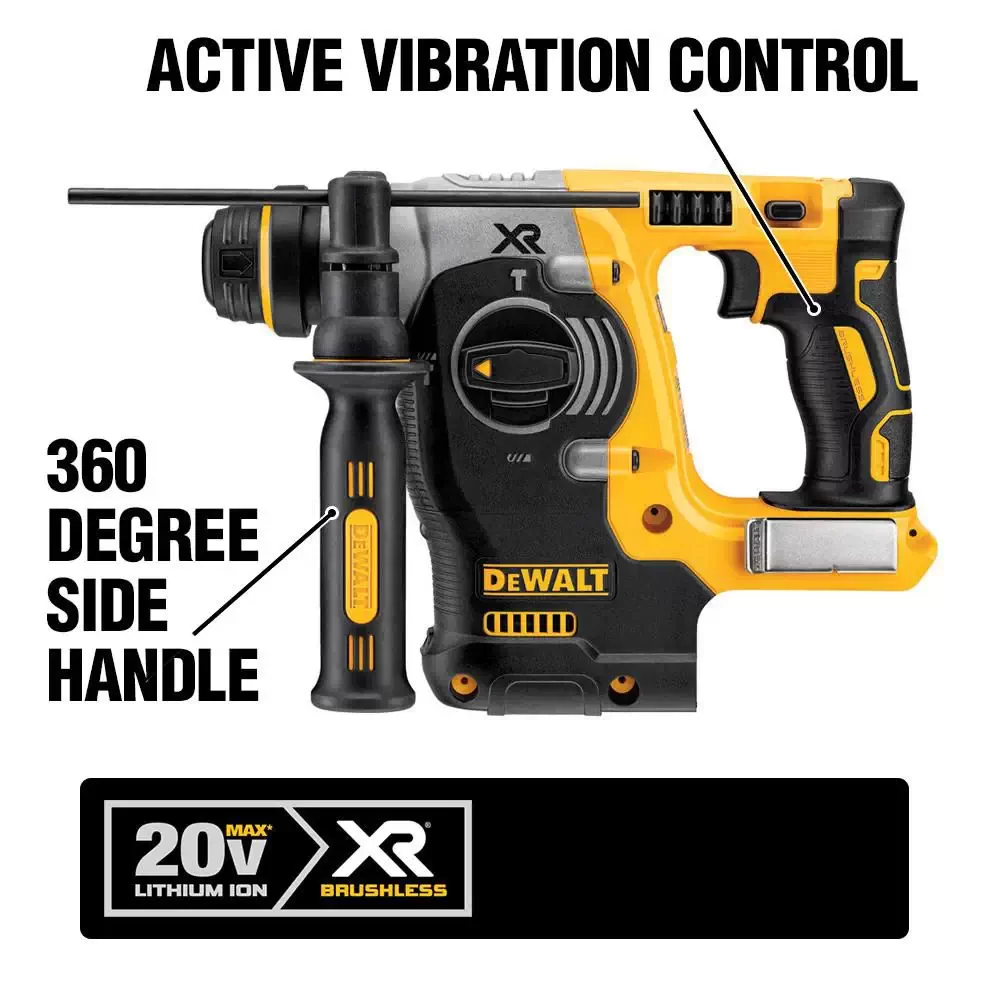

• SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
• Lightweight design makes this tool ideal for rod hanging, seismic & safety attachments, cable tray & strut mounting, clamp mounting, and rail mounting.
• OSHA Table 1 Compliant when paired with DWH303DH On Board Extractor.
• Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
• Rotating Dial to set tool to a specific application mode – Drill, Hammer Drill, or Chip.
• 2.1 Joules of impact energy for fast drilling in concrete.

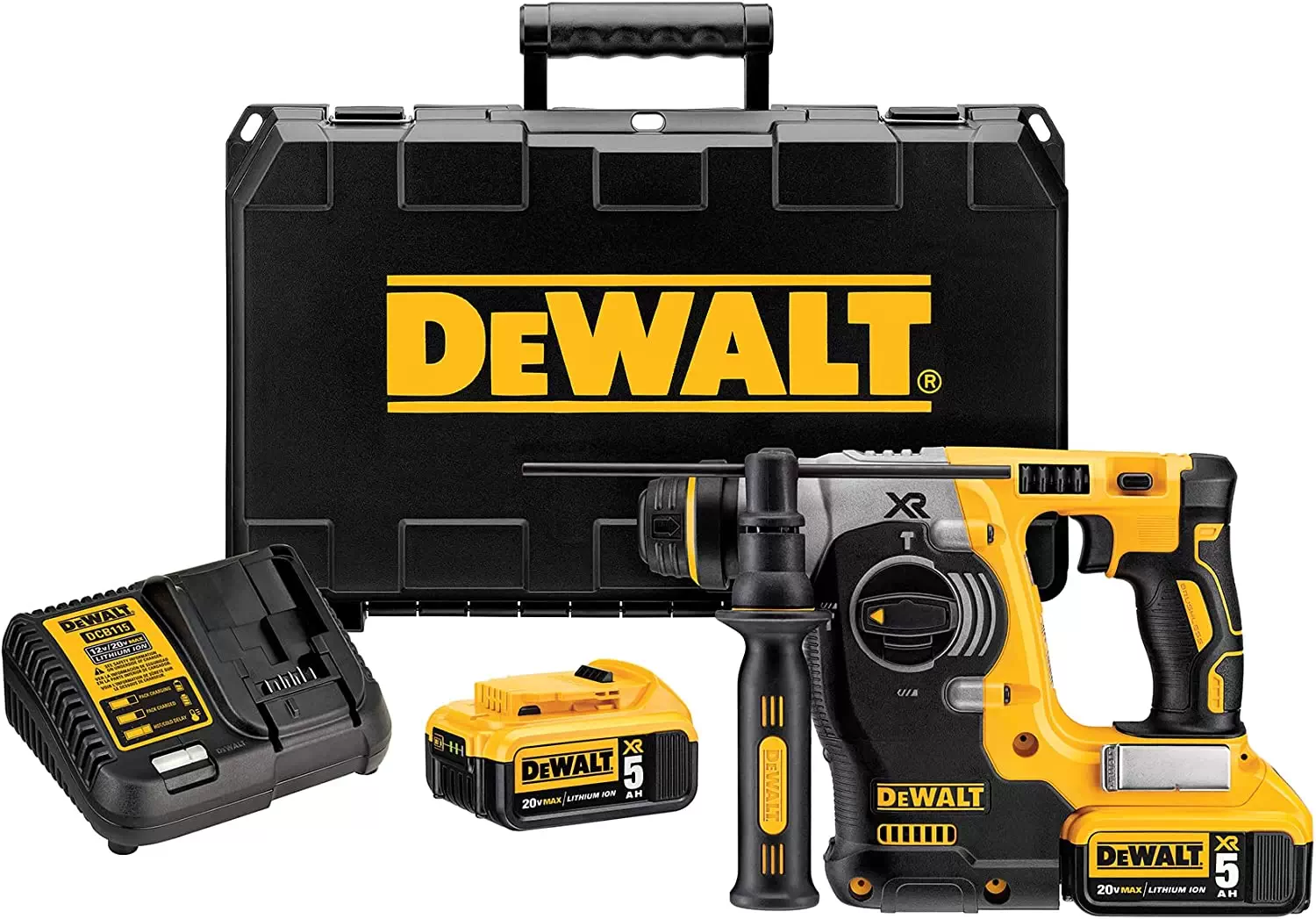

Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit (5.0AH) Includes

• (1) DCH273 Rotary Hammer
• (1) 360˚ Side Handle

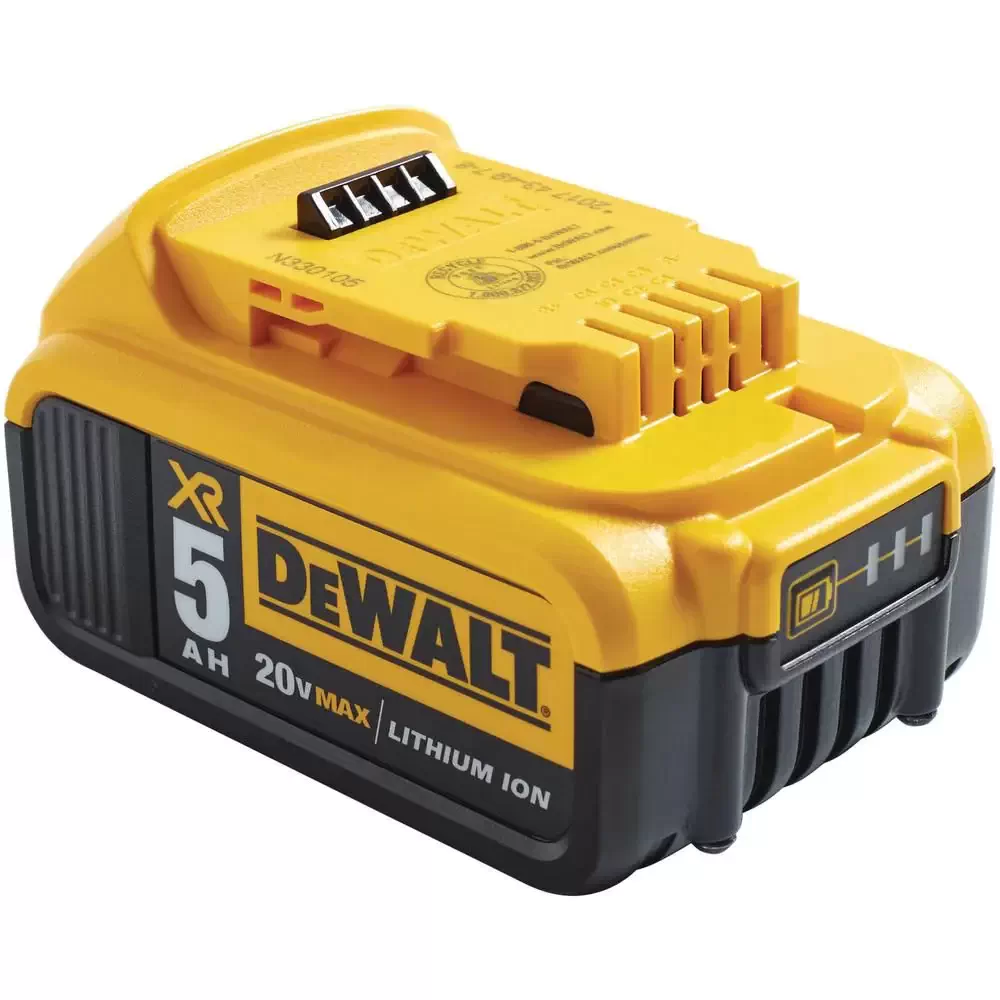

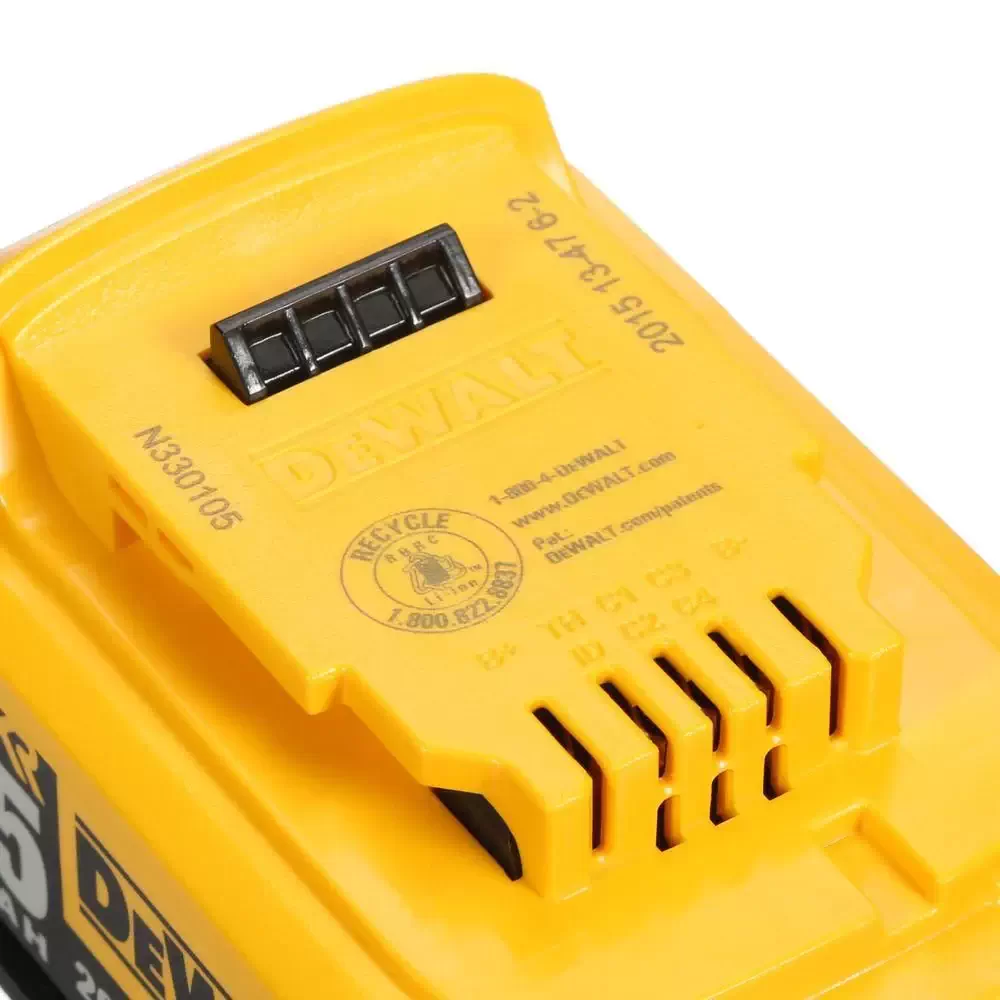

• (2) 20V MAX* DCB205 Batteries
• (1) Charger
• (1) Depth Rod
• (1) Adjustable Hook
• (1) Kit Box

Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit (5.0AH) Applications

• Concrete drilling

Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit (5.0AH) Specifications

• Weight (w/o Battery): 3110 g
• Product Width: 85 mm
• Max. Drilling Capacity (Masonry): 24 mm
• Blows per Minute (BPM): 0 – 4600
• No Load Speed (RPM): 0-1100
• Battery Capacity: 5 Ah
• Battery Chemistry: XR Li-ion
• Product Height: 202 mm
• Uncertainty K3 (Vibration): 1.5 m/s2
• Product Weight: 3.1 Kg
• Uncertainty K4 (Vibration): 1.5 m/s2
• Impact Energy (J) EPTA Value: 2.1J
• Uncertainty K1 (Vibration): 1.5 m/s2
• Power Output: 400 W
• Max. Drilling Capacity (Metal): 13 mm
• Voltage: 18 V
• Battery Type: LI-ION
• Product Length: 301 mm
• Uncertainty K2 (Vibration): 1.5 m/s2
• Max. Drilling Capacity (Wood): 26 mm

Dewalt DCH273P2 20V MAX XR Brushless 3 Mode SDS Rotary Hammer Kit (5.0AH) Warranty

• Dewalt’s Guaranteed Tough 3 Year Warranty (3/1/90)
